054595-E - TE Connectivity

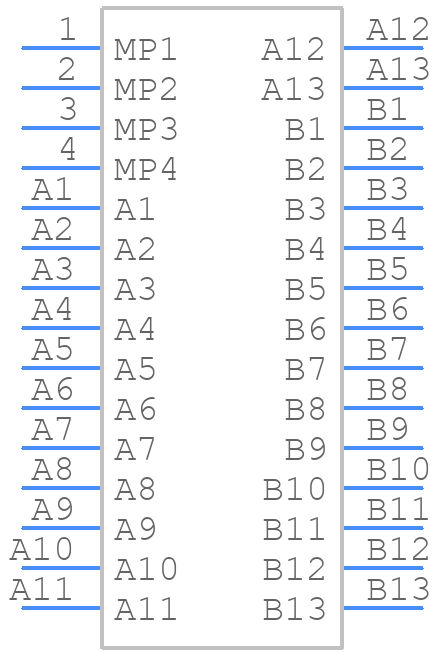

054595-E Details

• Manufacturer Part Number:

  054595-E

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  17 Weeks, 1 Day

• Manufacturer:

  TE Connectivity

• YTEOL:

  3

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.165 inch

• Body Depth:

  0.394 inch

• Body Length:

  0.85 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  707VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  13 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.27 mm

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  1.3 A

• Reference Standard:

  IEC; UL

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  13 N
