1549730000 - Weidmüller

Description: PCB connector USB jack, Type A, USB 3.0, 5 Gbps , THT/THR solder connection, 30...80 µ" Ni / ≥ 30 µ" Au , Tray (manual assembly)

Download 1549730000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1549730000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

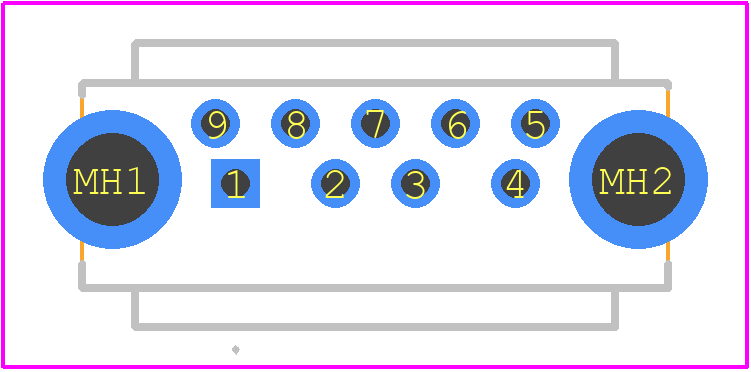

1549730000 - Weidmüller PCB footprint - Other - Other - 1549730000-3
click to zoom
3D Models
1549730000 - Weidmüller - 3D model - Other - 1549730000-3
click to zoom

1549730000 Details

  • Manufacturer Part Number:

    1549730000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1549730000 Overview

Use the download button to access the 1549730000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15497, or try a keyword search, such as Telecom and Datacom Connectors
