1557808 - Phoenix Contact

Description: SACC-CI-M12FS-8CON-L180-THR - Contact carrier, 8-position, Socket, straight, M12, A-coding, THR solder connection, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1557808 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1557808 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

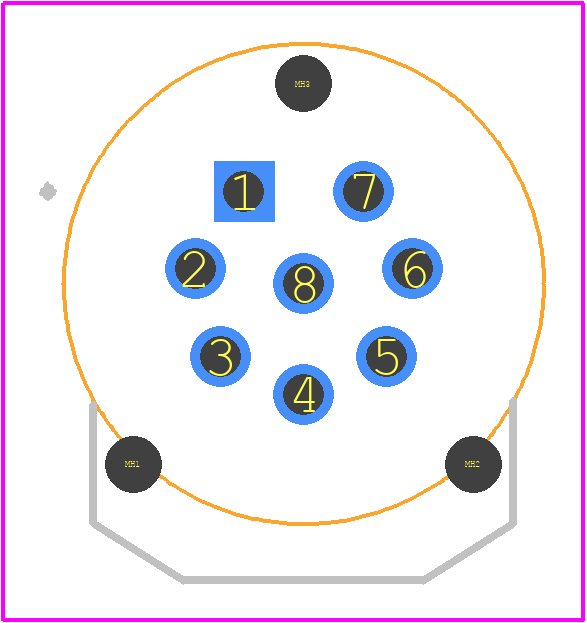

1557808 - Phoenix Contact PCB footprint - Other - Other - 1557808
click to zoom
3D Models
1557808 - Phoenix Contact - 3D model - Other - 1557808
click to zoom

1557808 Details

  • Manufacturer Part Number:

    1557808

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Total Number of Contacts:

    8

1557808 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting and to avoid damage to the PCB or the connector.
  • Yes, the 1557808 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to the PCB to maintain the connector's integrity in high-vibration environments.
  • The 1557808 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidities up to 95%. However, it's essential to consult the specific application requirements and environmental conditions to ensure the connector's reliability and performance.
  • Yes, the 1557808 connector is designed to be compatible with other Phoenix Contact products and accessories, such as cables, adapters, and connectors. However, it's essential to consult the specific product documentation and compatibility charts to ensure seamless integration.
  • The maximum current rating for the 1557808 connector is 12 A per contact. However, it's essential to consult the specific application requirements and ensure that the connector is used within its rated specifications to avoid overheating or damage.
