A good PCB layout for the 1583N16-U involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground layer is recommended.
To ensure proper biasing, follow the recommended biasing scheme in the datasheet, and make sure the voltage supply is well-regulated and noise-free. Additionally, use a low-noise, low-impedance voltage reference, and consider using a voltage regulator with a low dropout voltage.
The maximum allowable input signal amplitude depends on the specific application and desired level of distortion. As a general rule, keep the input signal amplitude below 2Vrms to ensure low distortion. However, for more critical applications, it's recommended to limit the input signal to 1Vrms or less.
To minimize noise and hum, use a well-regulated power supply, and consider using a noise filter or common-mode choke in the power supply lines. Additionally, use shielded cables and connectors, and keep the analog circuitry away from digital and switching noise sources.
The recommended operating temperature range for the 1583N16-U is -40°C to +85°C. Operating the device outside this range may affect its performance, reliability, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1583N16-U Overview

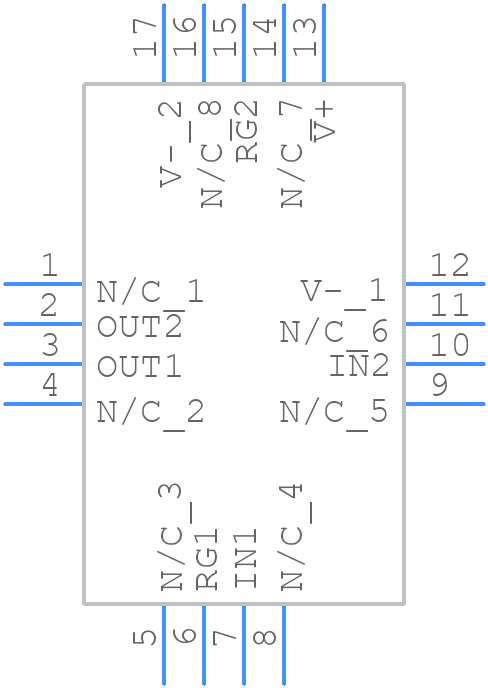

Use the download button to access the 1583N16-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1583N,
or try a keyword search, such as Audio/Video Amplifiers
