1586038-8 - TE Connectivity

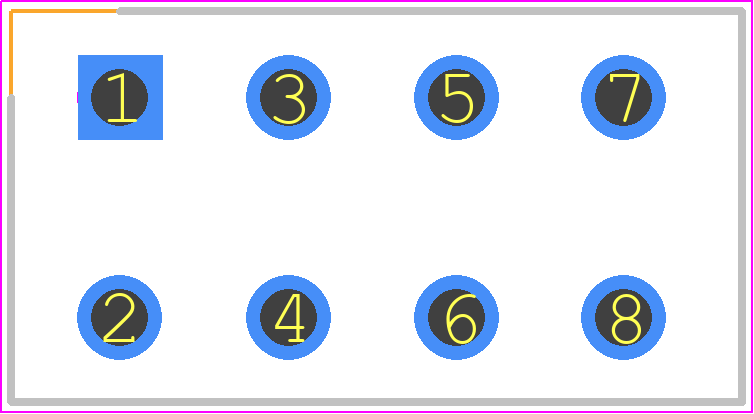

1586038-8 Details

• Manufacturer Part Number:

  1586038-8

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  15 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Additional Feature:

  VAL-U-LOK

• Body Breadth:

  0.384 inch

• Body Depth:

  0.504 inch

• Body Length:

  0.709 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Durability:

  50 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  6.672 N

• Insulation Diameter-Min:

  2.39 inch

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYAMIDE

• MIL Conformance:

  NO

• Mains Connector Rating:

  9A

• Mating Contact Pitch:

  0.165 inch

• Mating Contact Row Spacing:

  0.165 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  GUIDE SLOT

• Mounting Option 2:

  LATCHING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.5118 mm

• Panel Mount:

  NO

• Plating Thickness:

  200u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  9 A

• Reference Standard:

  UL

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  4.2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .5004 N
