15KPA066C-SD-Q - Bourns

Description: 96.9V Clamp 143.3A Ipp Tvs Diode Surface Mount DO-218

Download 15KPA066C-SD-Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

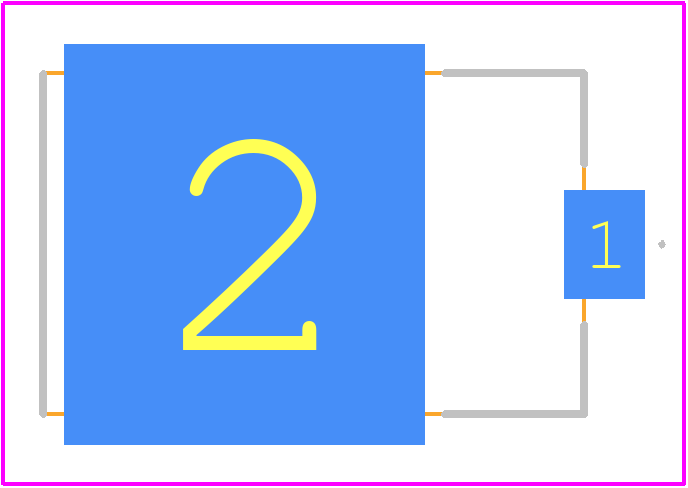

15KPA066C-SD-Q - Bourns PCB footprint - Other - Other -  DO-218_2026-3.3
click to zoom
3D Models
15KPA066C-SD-Q - Bourns  - 3D model - Other -  DO-218_2026-3.3
click to zoom

15KPA066C-SD-Q Details

  • Manufacturer Part Number:

    15KPA066C-SD-Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-10-17

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.86

  • Additional Feature:

    PD-CASE

  • Breakdown Voltage-Max:

    80 V

  • Breakdown Voltage-Min:

    66.4 V

  • Breakdown Voltage-Nom:

    73.2 V

  • Clamping Voltage-Max:

    96.9 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-218

  • JESD-30 Code:

    R-PSSO-C1

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    15000 W

  • Number of Elements:

    1

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Power Dissipation-Max:

    8 W

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    66 V

  • Reverse Current-Max:

    10 µA

  • Reverse Test Voltage:

    66 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30
