15SRBP - TE Connectivity

Description: Body Features: Product Orientation Right Angle | Electrical Characteristics: Operating Voltage 250 VAC | Leakage Current (Max) (120VAC, 60Hz) 2 MICA | Current Rating 15 AMP | Leakage Current (Max) (250VAC, 50Hz) 5 MICA | Mechanical Attachment: Panel Mount Feature Type Flanged | Product Type Features: Filter Connector Type IEC 60320-1 C-14 | Output Termination Type PCB Pins | Filtering Requirements Unfiltered | Ground Choke Option No | Filter Type Power Line | Usage Conditions: Operating Temperature Range -1

Download 15SRBP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
15SRBP - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

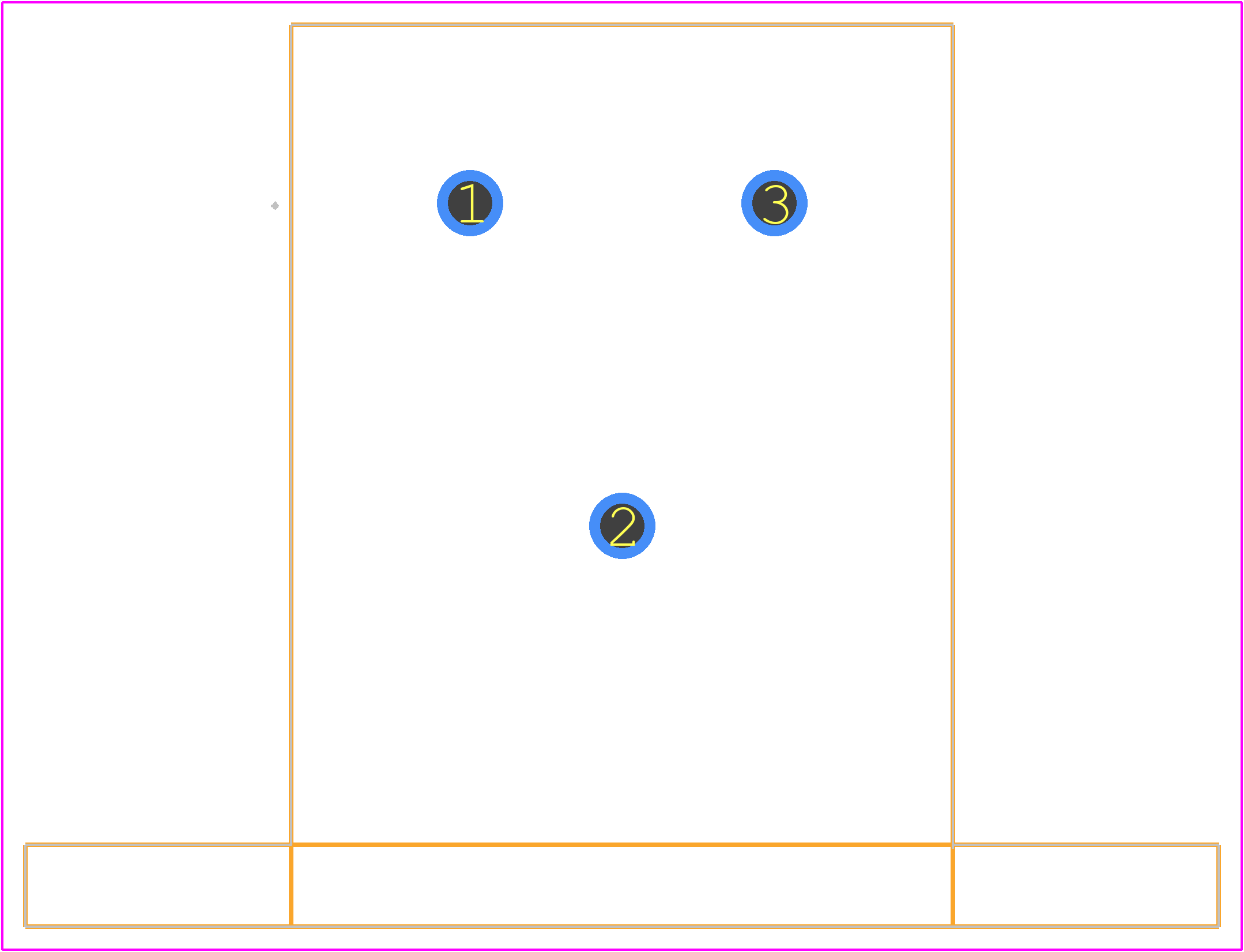

15SRBP - TE Connectivity PCB footprint - Other - Other - 15SRBP-2
click to zoom
3D Models
15SRBP - TE Connectivity - 3D model - Other - 15SRBP-2
click to zoom

15SRBP Details

  • Manufacturer Part Number:

    15SRBP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    UL; CSA; VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Operating Temperature-Max:

    40 °C

  • Operating Temperature-Min:

    -10 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

15SRBP Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of 15SRBP is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, 15SRBP is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard.
  • The operating temperature range of 15SRBP is -40°C to 125°C, making it suitable for use in a wide range of industrial and transportation applications.
  • Yes, 15SRBP is designed to operate in harsh environments. It meets the IEC 60068-2-52 salt spray test and IEC 60068-2-78 damp heat test standards.
  • Yes, 15SRBP is designed for high-reliability and long-term stability. It has a mean time between failures (MTBF) of over 1 million hours, making it suitable for use in critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15SRBP Overview

Use the download button to access the 15SRBP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15SRB, or try a keyword search, such as Mains Power Connectors
