1600130623 - Molex

Description: stAK50h 2 Bay Infotainment Hybrid Header, 56 Circuits, Bay A: 28 Circuit/Key 2; Bay B: 28 Circuit/Key 3; 2.10mm PC Tail Length, UL 94 HB, Gray, Tube

Download 1600130623 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1600130623 - Molex - PCB symbol
click to zoom
PCB Footprints

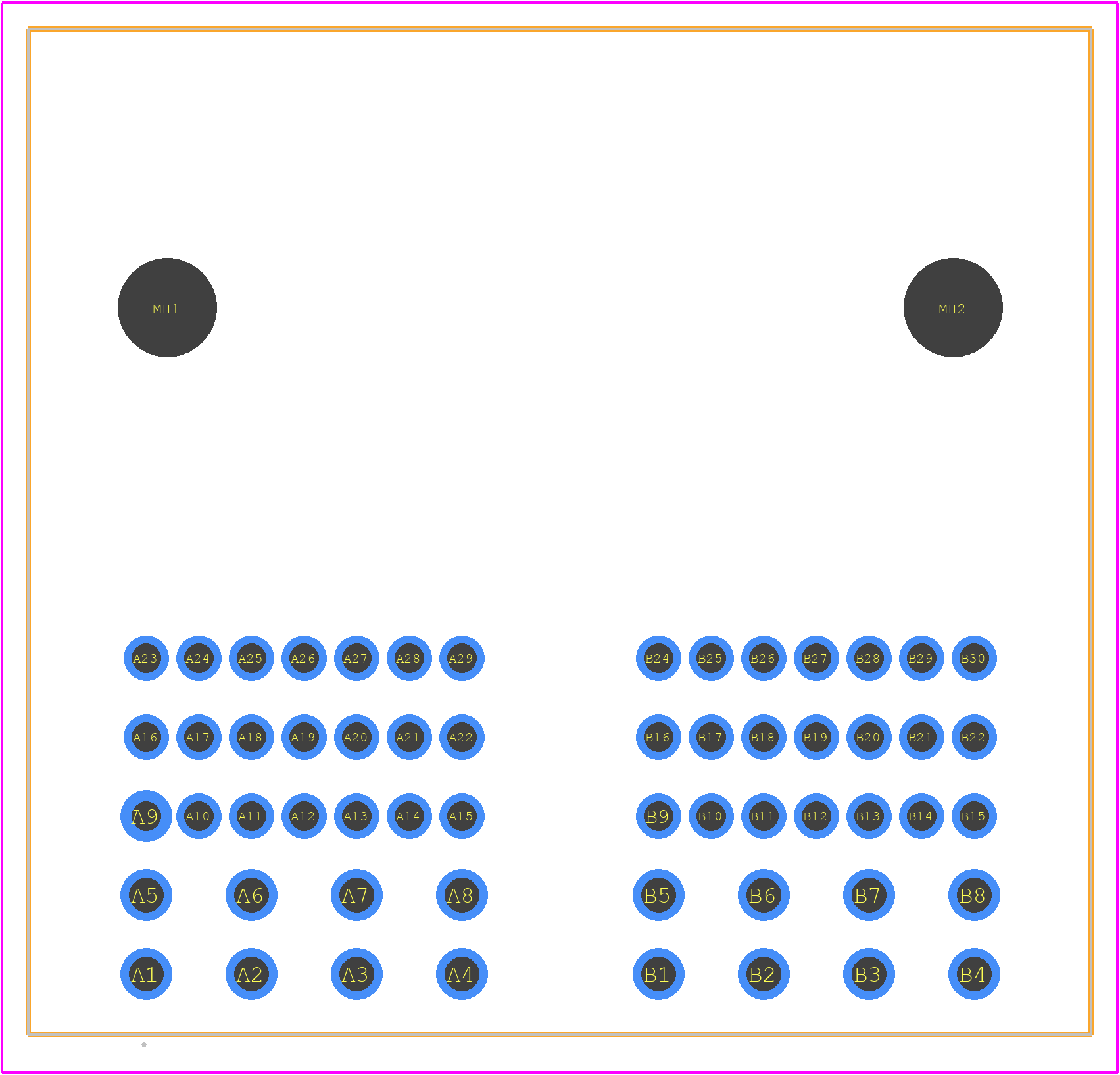

1600130623 - Molex PCB footprint - Other - Other - 1600130623-1
click to zoom
3D Models
1600130623 - Molex - 3D model - Other - 1600130623-1
click to zoom

1600130623 Details

  • Manufacturer Part Number:

    1600130623

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7.95

  • Body Breadth:

    0.902 inch

  • Body Depth:

    1.504 inch

  • Body Length:

    1.59 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    HYBRID

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    SYNDIOTACTIC POLYSTYRENE

  • JESD-609 Code:

    e3

  • Mating Information:

    1600140002, 1600140003

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    56

1600130623 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 1600130623 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • Yes, the 1600130623 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
  • The operating temperature range for the 1600130623 connector is -40°C to 105°C (-40°F to 221°F).
  • The 1600130623 connector has a moisture-sealing rating of IP67, making it suitable for use in humid or wet environments, but it's not designed for continuous immersion in water.
