1605130000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 8, THT solder connection, Box

Download 1605130000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1605130000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

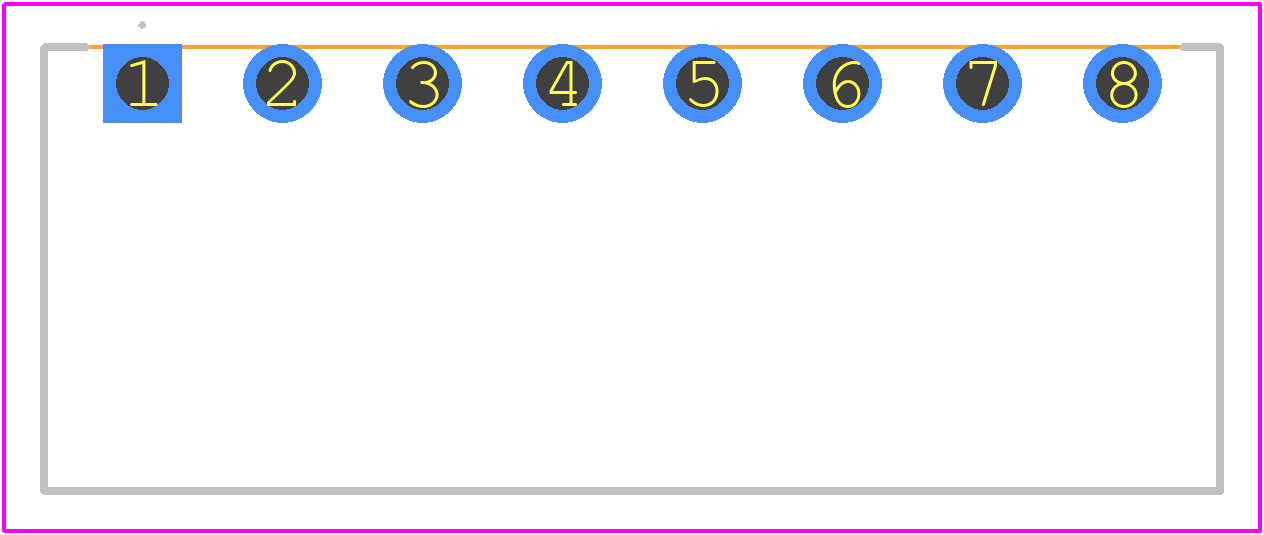

1605130000 - Weidmüller PCB footprint - Other - Other - 1605130000-2
click to zoom
3D Models
1605130000 - Weidmüller - 3D model - Other - 1605130000-2
click to zoom

1605130000 Details

  • Manufacturer Part Number:

    1605130000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1605130000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1605130000 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1605130000 has a protection rating of IP67, making it suitable for outdoor use in harsh environments.
  • The maximum operating temperature for the 1605130000 is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 1605130000 is suitable for use with aluminum wires, but it's recommended to use a wire with a minimum cross-section of 0.5 mm² to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1605130000 Overview

Use the download button to access the 1605130000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16051, or try a keyword search, such as Terminals and Terminal Blocks
