1607110000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 9, THT solder connection, Box

Download 1607110000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1607110000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

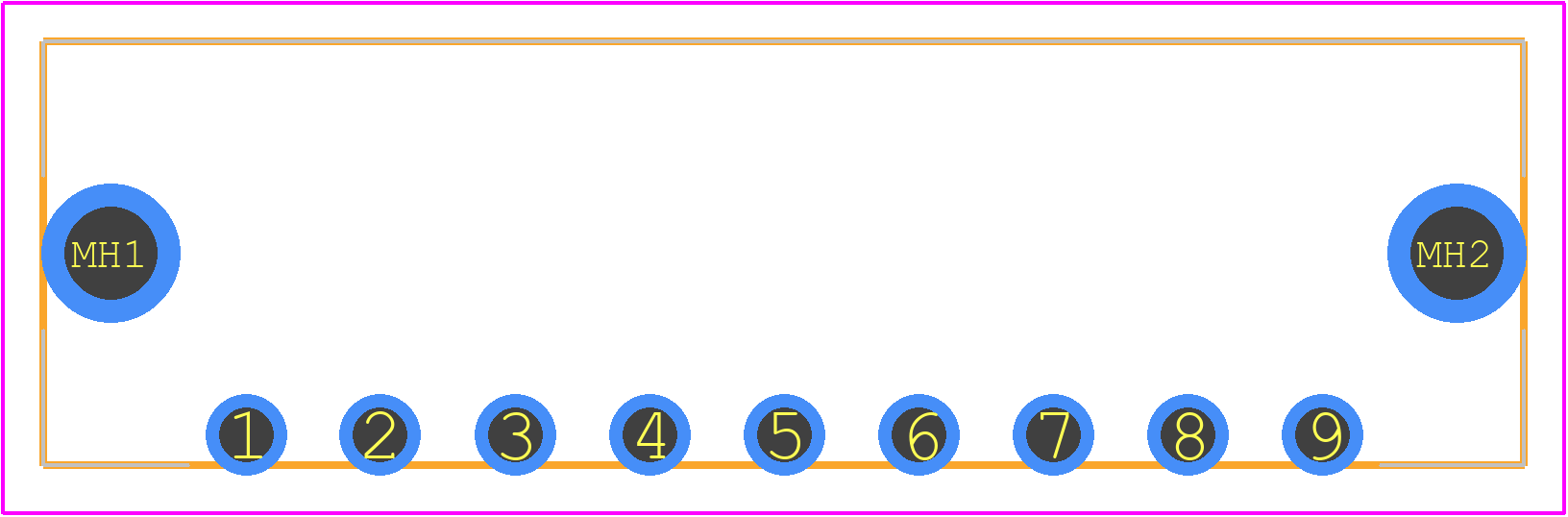

1607110000 - Weidmüller PCB footprint - Other - Other - 1607110000-2
click to zoom
3D Models
1607110000 - Weidmüller - 3D model - Other - 1607110000-2
click to zoom

1607110000 Details

  • Manufacturer Part Number:

    1607110000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.75

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

1607110000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1607110000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1607110000 is compatible with industrial protocols such as PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
  • The maximum cable length supported by the 1607110000 is 100 meters, making it suitable for use in industrial applications where devices are located at a distance from each other.
  • Yes, the 1607110000 has built-in surge protection, which helps to protect the device from voltage surges and spikes, ensuring reliable operation in harsh industrial environments.
  • The 1607110000 is designed to meet the requirements of hazardous locations, such as those found in the oil and gas, chemical, and pharmaceutical industries, and is certified to relevant standards such as ATEX and IECEx.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1607110000 Overview

Use the download button to access the 1607110000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16071, or try a keyword search, such as Headers and Edge Type Connectors
