1607530000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 5, THT solder connection, Box

Download 1607530000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1607530000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

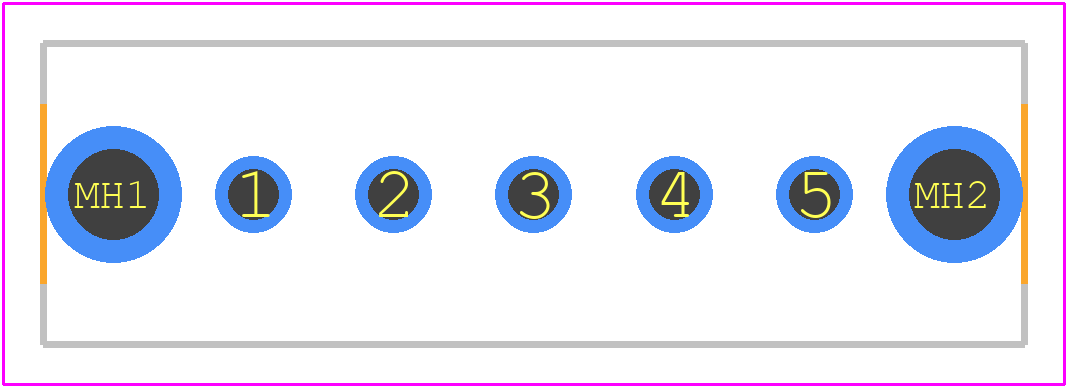

1607530000 - Weidmüller PCB footprint - Other - Other - 1607530000
click to zoom
3D Models
1607530000 - Weidmüller - 3D model - Other - 1607530000
click to zoom

1607530000 Details

  • Manufacturer Part Number:

    1607530000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1607530000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1607530000 is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1607530000 is designed for outdoor use and is IP67 rated, providing protection against dust and water ingress.
  • The maximum current rating for the 1607530000 is 10A per pin, making it suitable for use in applications where high currents are required.
  • Yes, the 1607530000 is designed to withstand high-vibration environments and is suitable for use in applications such as industrial machinery and transportation systems.
  • Yes, the 1607530000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.
