1607540000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 6, THT solder connection, Box

Download 1607540000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1607540000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

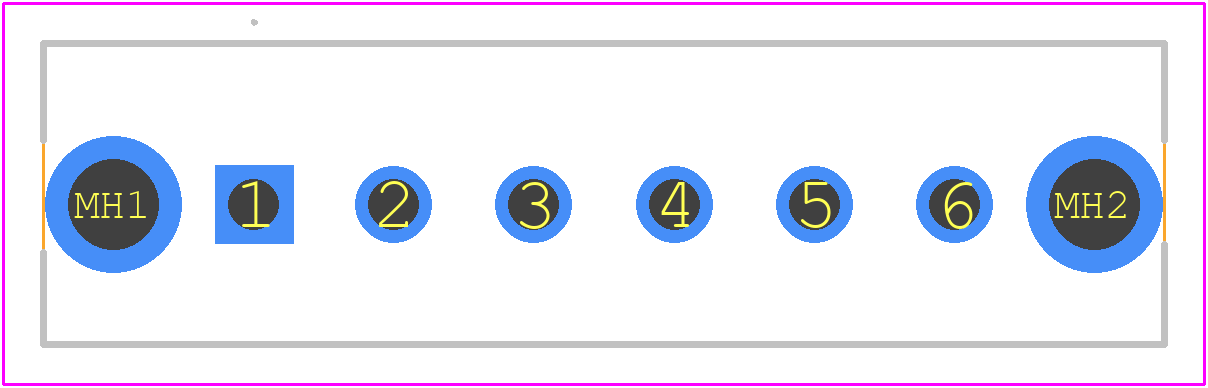

1607540000 - Weidmüller PCB footprint - Other - Other - 1607540000-1
click to zoom
3D Models
1607540000 - Weidmüller - 3D model - Other - 1607540000-1
click to zoom

1607540000 Details

  • Manufacturer Part Number:

    1607540000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1607540000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1607540000 is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for use in high-vibration environments.
  • Yes, the 1607540000 has a protection rating of IP67, making it suitable for outdoor use in harsh environments.
  • The maximum operating temperature of the 1607540000 is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 1607540000 is suitable for use with aluminum wires, but it's recommended to use a wire with a minimum cross-section of 0.5 mm² to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1607540000 Overview

Use the download button to access the 1607540000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16075, or try a keyword search, such as Terminals and Terminal Blocks
