1607620000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 14, THT solder connection, Box

Download 1607620000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

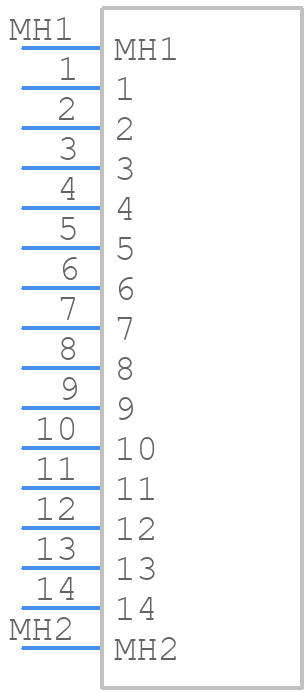

1607620000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

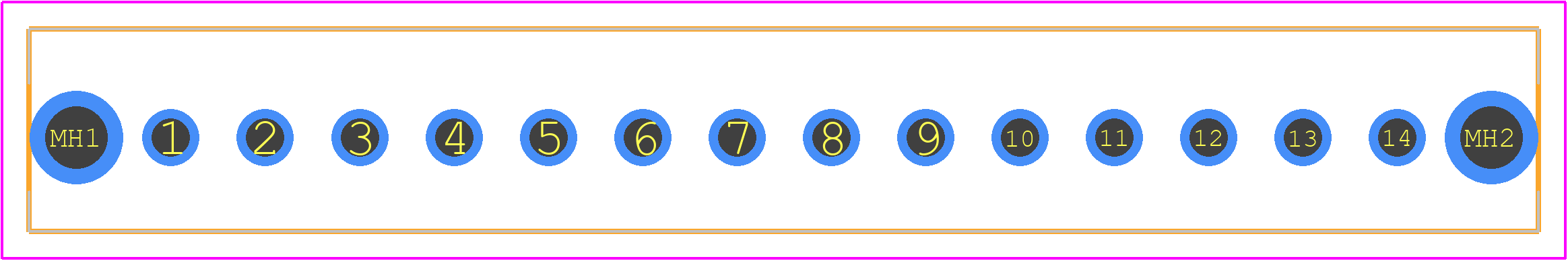

1607620000 - Weidmüller PCB footprint - Other - Other - 1607620000-2
click to zoom
3D Models
1607620000 - Weidmüller - 3D model - Other - 1607620000-2
click to zoom

1607620000 Details

  • Manufacturer Part Number:

    1607620000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.75

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    14

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1607620000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1607620000 is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1607620000 is designed for outdoor use and has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for harsh environmental conditions.
  • The 1607620000 has a mating cycle of 500 cycles, which means it can be connected and disconnected up to 500 times without compromising its performance or reliability.
  • Yes, the 1607620000 is designed to withstand high-vibration applications, making it suitable for use in industrial environments where vibration is a concern.
  • Yes, the 1607620000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1607620000 Overview

Use the download button to access the 1607620000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16076, or try a keyword search, such as Terminals and Terminal Blocks
