1612435-4 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Positions 167 | Number of Sections 5 | PCB Mount Orientation Right Angle | Number of Signal Positions 167 | Number of Rows 4 | Contact Features: Contact Mating Area Plating Material Gold (Au) | Mating Tab Thickness .025 INCH | Mating Tab Thickness .63 MM | Mating Tab Width .63 MM | Mating Tab Width 1 MM | Mating Tab Width .039 INCH | Contact Type Tab | Contact Mating Area Plating Material Tin (Sn) | Mating Tab Width .025 INCH |

Download 1612435-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1612435-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

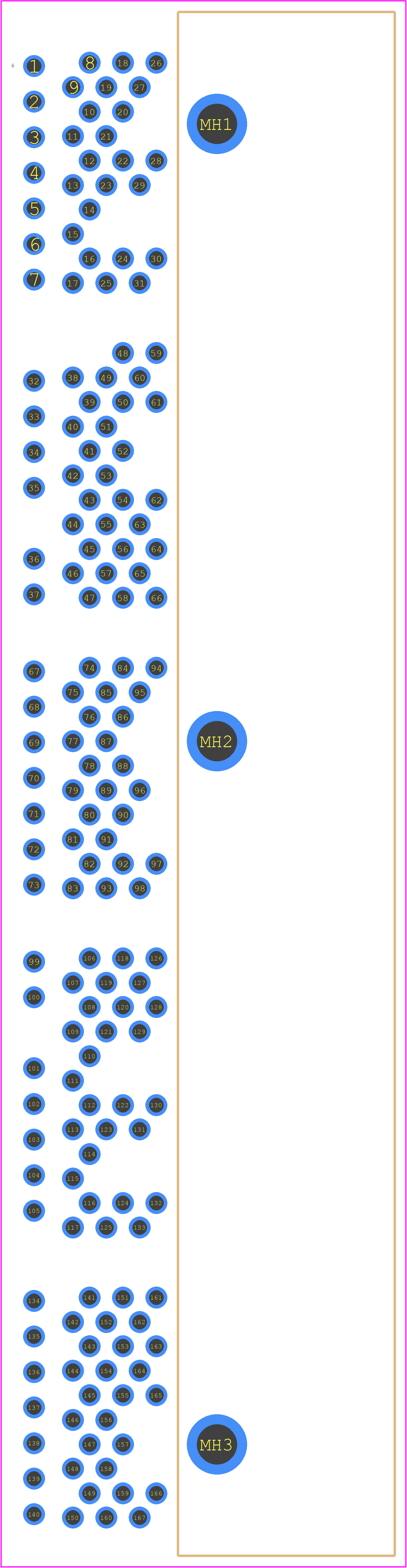

1612435-4 - TE Connectivity PCB footprint - Other - Other - 1612435-4-2
click to zoom
3D Models
1612435-4 - TE Connectivity - 3D model - Other - 1612435-4-2
click to zoom

1612435-4 Details

  • Manufacturer Part Number:

    1612435-4

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.894 inch

  • Body Depth:

    1.451 inch

  • Body Length:

    5.465 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    GLASS FILLED SYNDIOTACTIC POLYSTYRENE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    167
