- Part Number 161D40
- Manufacturer Hammond Manufacturing
- Pin Count 6
- Part Category Transformer
- Package Category Other
- Footprint Name Other - 161D40
- Released Date Mar 6, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
161D40 Details
-
Manufacturer Part Number:
161D40
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Canada
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Hammond Manufacturing
-
YTEOL:
6.02
-
Approvals:
CSA; UL
-
Center Tap Feature 1:
NO
-
Center Tap Feature 2:
NO
161D40 Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the 161D40 is 10-12 in-lbs (1.1-1.4 Nm).
-
Yes, the 161D40 is designed to withstand high-vibration environments. However, it's recommended to follow the mounting instructions and ensure the enclosure is properly secured to prevent damage.
-
The 161D40 is not designed for outdoor use and should be used in a dry, indoor environment. If outdoor use is required, consider using a weather-resistant or waterproof enclosure.
-
Yes, Hammond Manufacturing offers customization services for the 161D40. Contact their customer service or a authorized distributor for more information and a quote.
-
The 161D40 has an IP rating of IP65, which means it provides protection against dust and water jets from any direction.
Trust Checks
Expert Contribution
System Verified
Community Approved
161D40 Overview

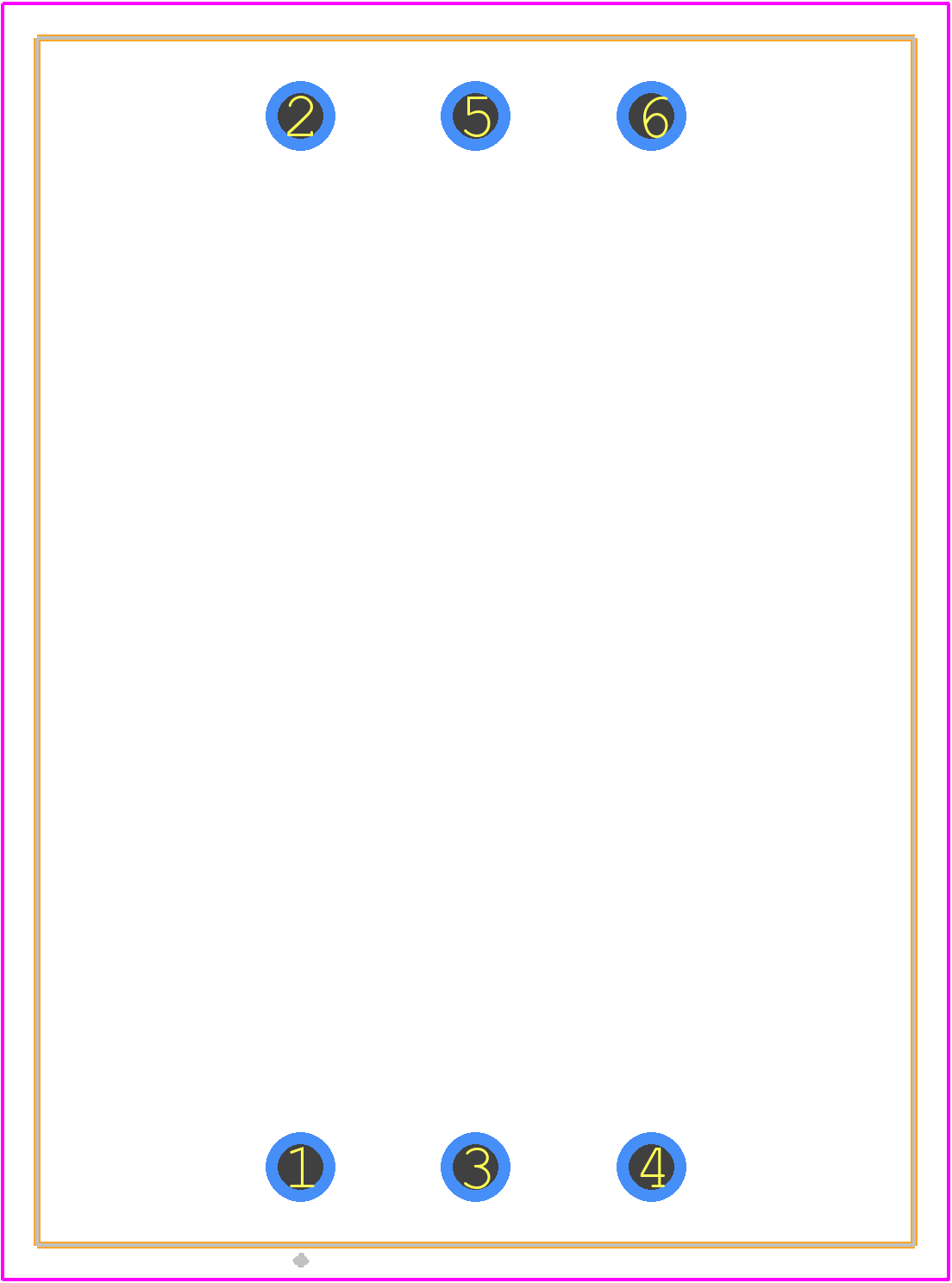

Use the download button to access the 161D40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 161D4,
or try a keyword search, such as Power/Mains Transformers
