162E120 - Hammond Manufacturing

Description: Power Transformers Transformer, low volt PCB mount, low profile, 115/230V, 2.4VA, 120V C.T. @ .02A

Download 162E120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

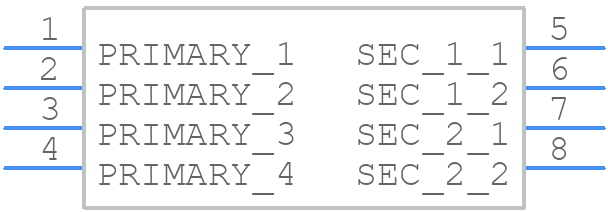

162E120 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

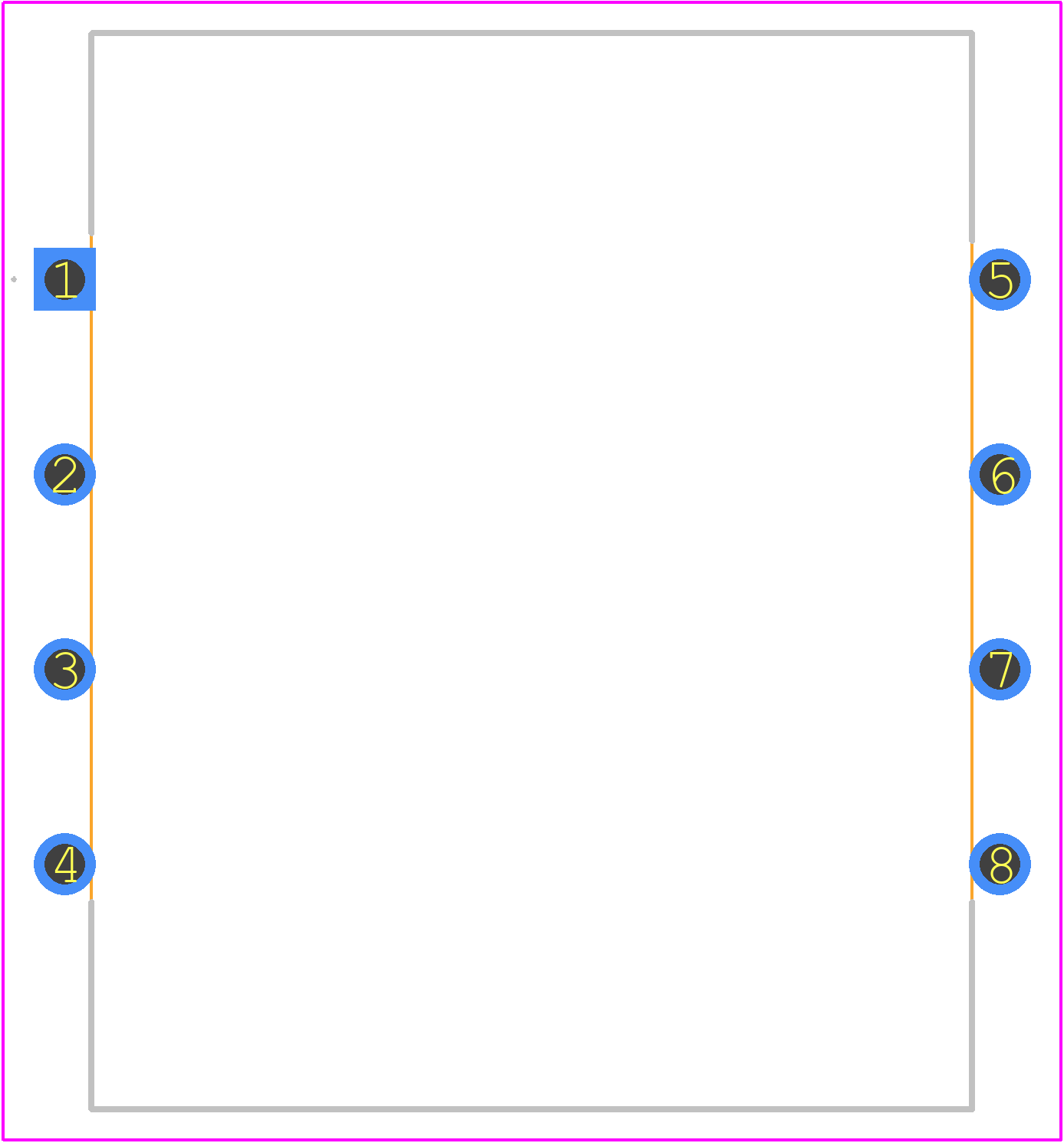

162E120 - Hammond Manufacturing PCB footprint - Other - Other - 162E120-1
click to zoom
3D Models
162E120 - Hammond Manufacturing - 3D model - Other - 162E120-1
click to zoom

162E120 Details

  • Manufacturer Part Number:

    162E120

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Canada

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.02

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.226 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2500 V

  • Length:

    35.052 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.04 A

  • Output Voltage 1:

    60 V

  • Output Voltage 2:

    60 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.4 VA

  • Width:

    28.702 mm
