1633600000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 8, THT solder connection, Box

Download 1633600000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1633600000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

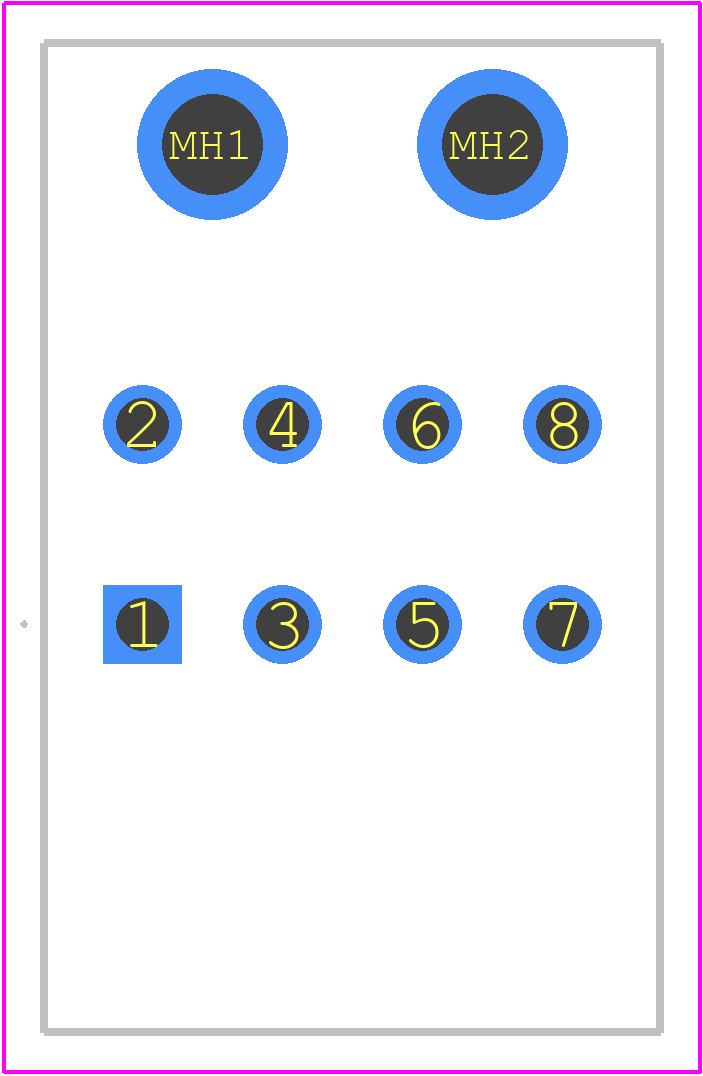

1633600000 - Weidmüller PCB footprint - Other - Other - 1633600000-2
click to zoom
3D Models
1633600000 - Weidmüller - 3D model - Other - 1633600000-2
click to zoom

1633600000 Details

  • Manufacturer Part Number:

    1633600000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1633600000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1633600000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1633600000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, ensuring seamless integration with existing systems.
  • The maximum cable length supported by the 1633600000 is 100 meters, ensuring reliable data transmission over extended distances.
  • The 1633600000 has built-in surge protection, which provides a high level of immunity against electromagnetic interference (EMI) and electrostatic discharge (ESD).
  • The 1633600000 is designed to meet the requirements for use in hazardous locations, including explosive atmospheres, and carries the necessary certifications (e.g., ATEX, IECEx).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1633600000 Overview

Use the download button to access the 1633600000 schematic symbol, PCB footprint, and 3D model.
