1633640000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 16, THT solder connection, Box

Download 1633640000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1633640000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

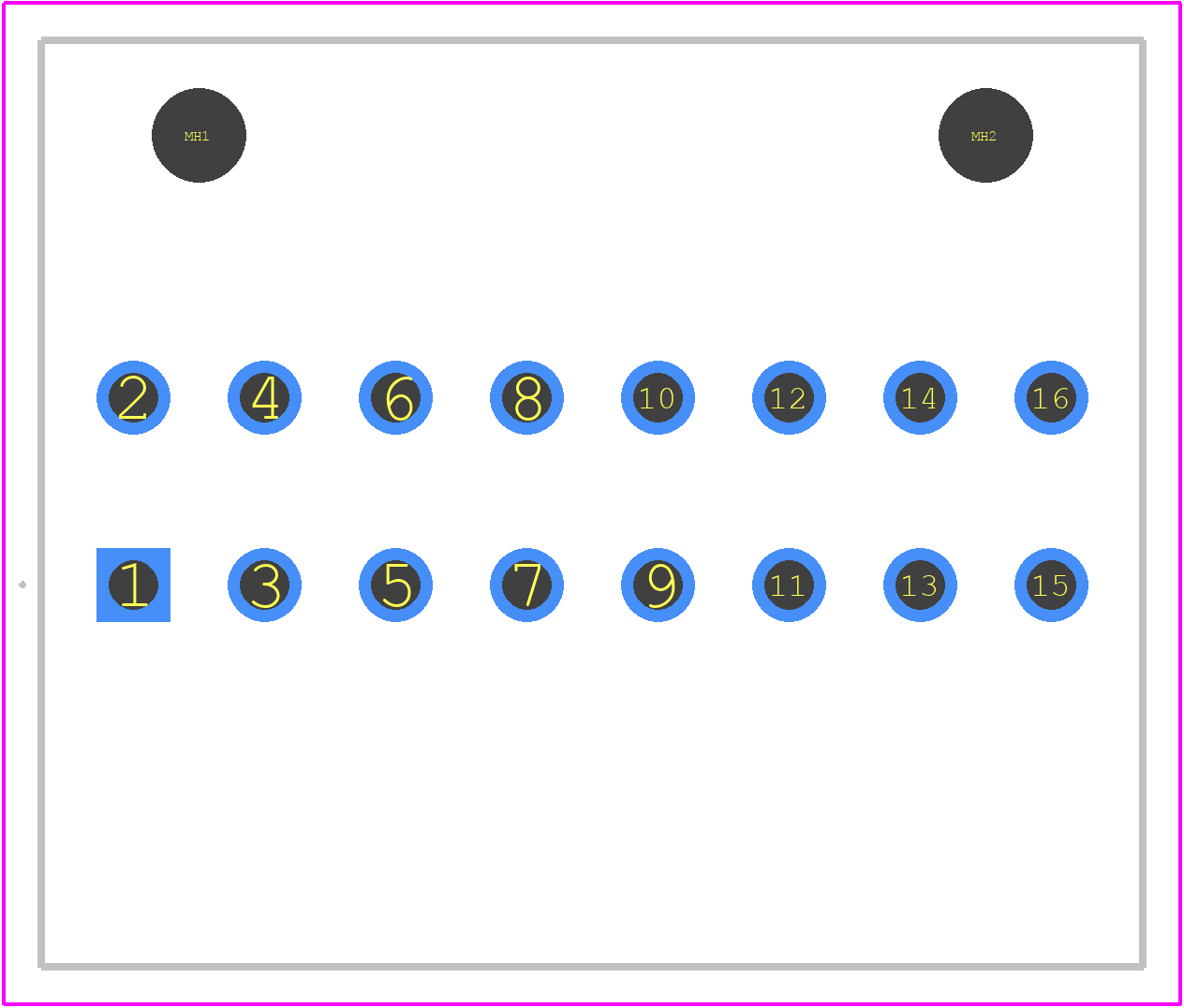

1633640000 - Weidmüller PCB footprint - Other - Other - 1633640000
click to zoom
3D Models
1633640000 - Weidmüller - 3D model - Other - 1633640000
click to zoom

1633640000 Details

  • Manufacturer Part Number:

    1633640000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    16

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1633640000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1633640000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1633640000 is compatible with various industrial protocols, including Modbus TCP, EtherNet/IP, and PROFINET, allowing for seamless integration with existing industrial networks.
  • The 1633640000 supports cable lengths of up to 100 meters, making it suitable for use in industrial applications where devices are located at a distance from the central control unit.
  • Yes, the 1633640000 has built-in surge protection, which helps to protect the device and connected equipment from voltage spikes and electromagnetic interference (EMI).
  • The 1633640000 is designed for use in non-hazardous locations. However, Weidmüller offers other products that are certified for use in hazardous locations, such as explosion-proof areas.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1633640000 Overview

Use the download button to access the 1633640000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16336, or try a keyword search, such as Terminals and Terminal Blocks
