1633870000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 16, THT solder connection, Box

Download 1633870000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

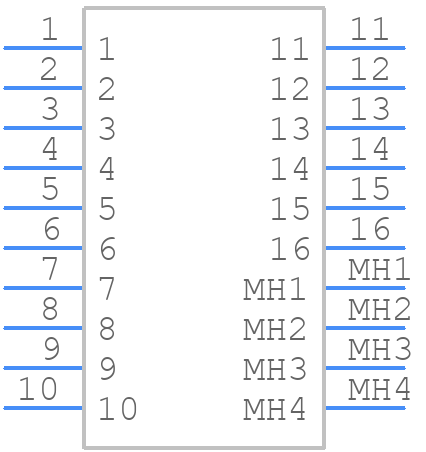

1633870000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

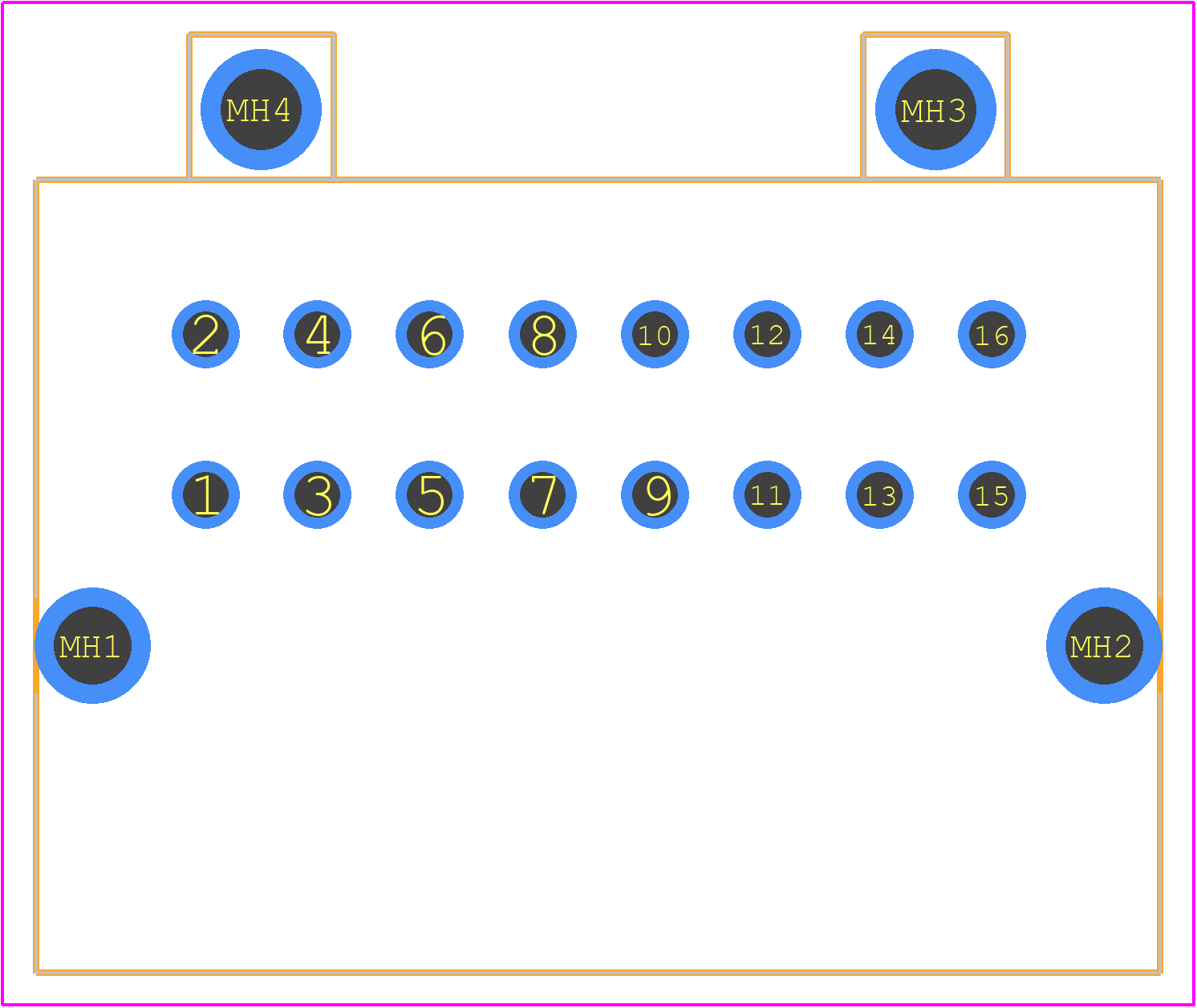

1633870000 - Weidmüller PCB footprint - Other - Other - 1633870000-3
click to zoom
3D Models
1633870000 - Weidmüller - 3D model - Other - 1633870000-3
click to zoom

1633870000 Details

  • Manufacturer Part Number:

    1633870000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.76

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    16

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1633870000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1633870000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1633870000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
  • The maximum cable length supported by the 1633870000 depends on the specific application and cable type used. However, as a general guideline, Weidmüller recommends a maximum cable length of 100 meters for most industrial Ethernet applications.
  • The 1633870000 has built-in surge protection to protect against voltage spikes and electromagnetic interference (EMI). However, depending on the specific application and environmental conditions, additional external protection may be required to ensure reliable operation.
  • The 1633870000 is designed for use in industrial environments, but it is not certified for use in hazardous locations or explosive atmospheres. If you need to use the product in such environments, you should consult with Weidmüller or a qualified safety expert to determine the necessary certifications and precautions.
