The recommended torque value is 0.5-0.8 Nm (5-8 in-lbs) for the screw threads on the 163A13829X connector. However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
Yes, the 163A13829X connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance. However, it's crucial to ensure proper mounting and secure fastening to prevent damage or disconnection.
The 163A13829X connector has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's essential to ensure proper sealing and protection from extreme temperatures, moisture, and contaminants.
The 163A13829X connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines for temperature-related considerations.
The 163A13829X connector is designed for high-speed and high-frequency applications, with a bandwidth of up to 10 Gbps. However, it's essential to ensure proper signal integrity and follow the manufacturer's guidelines for high-speed applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
163A13829X Overview

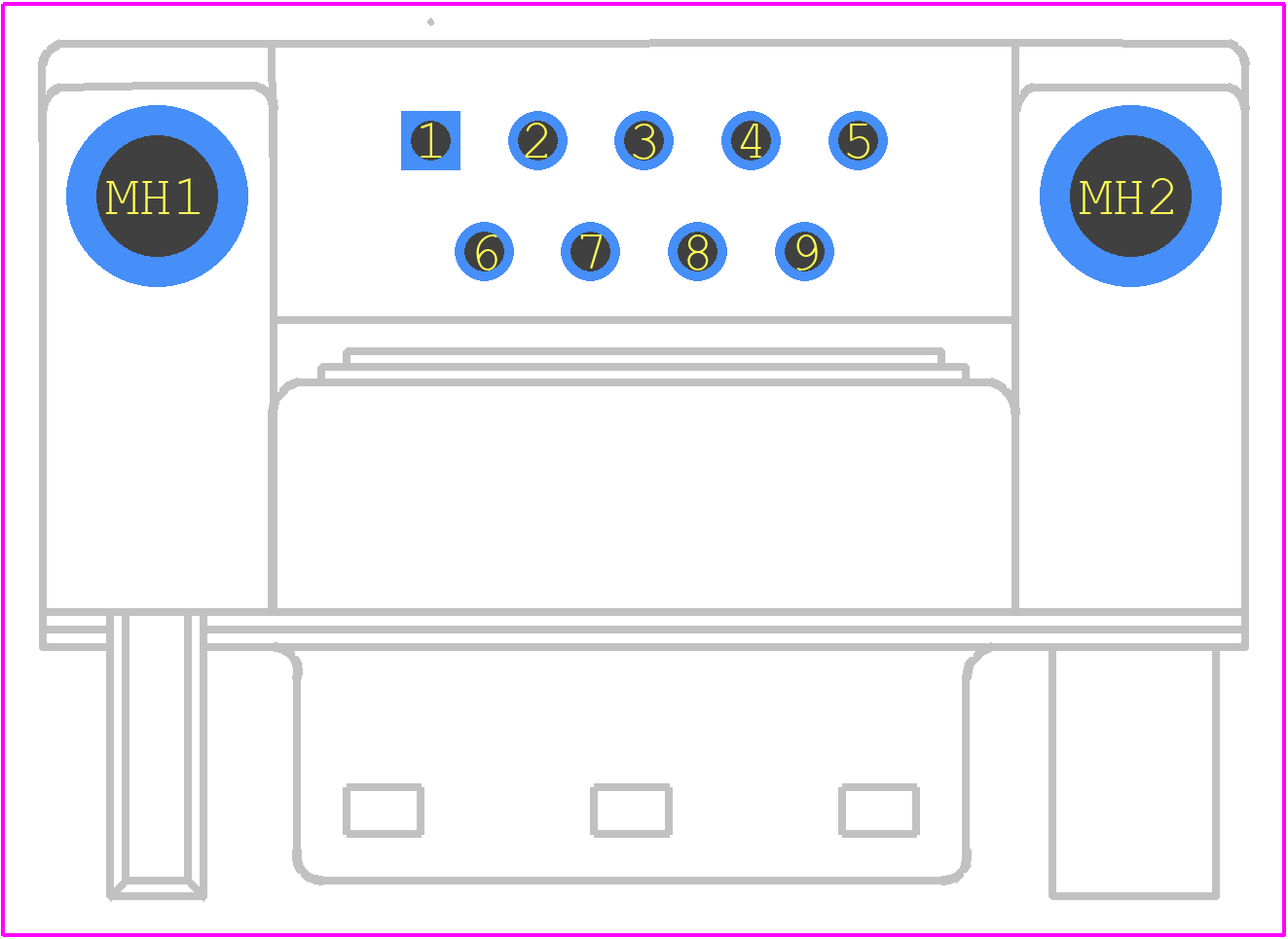

Use the download button to access the 163A13829X schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 163A1,
or try a keyword search, such as D Type Connectors
