163A17079X - CONEC

Description: D-Sub High Density Connectors DSUB SOLDER PIN STR 3mmTH PREC MCHND CNT

Download 163A17079X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
163A17079X - CONEC - PCB symbol
click to zoom
PCB Footprints

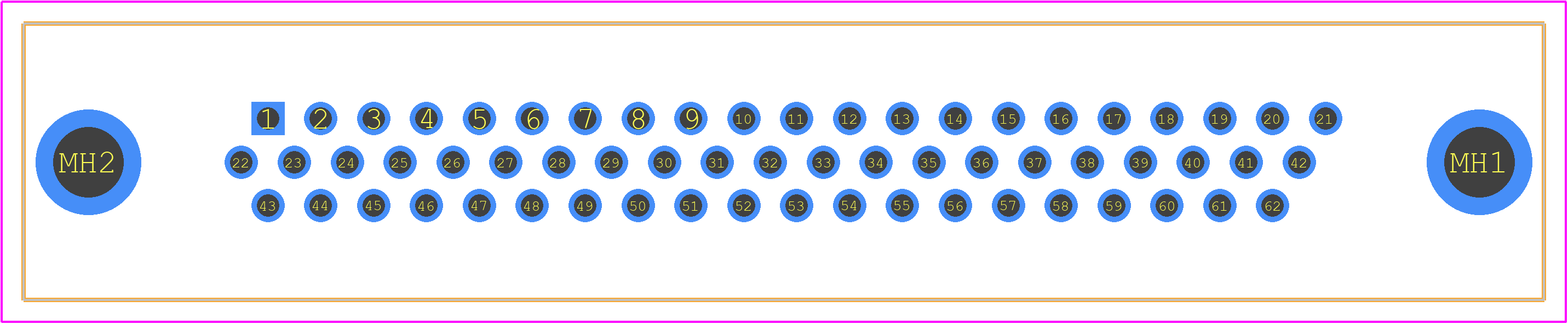

163A17079X - CONEC PCB footprint - Other - Other - 163A17079X-2
click to zoom
3D Models
163A17079X - CONEC - 3D model - Other - 163A17079X-2
click to zoom

163A17079X Details

  • Manufacturer Part Number:

    163A17079X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Conec Corporation

  • YTEOL:

    8

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    62

163A17079X Frequently Asked Questions (FAQs)

  • The operating temperature range of the 163A17079X connector is -40°C to 125°C.
  • Yes, the 163A17079X connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • The 163A17079X connector has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 163A17079X connector is designed to be resistant to moisture, chemicals, and other environmental stressors, making it suitable for use in harsh environments.
  • The typical lead time for delivery of the 163A17079X connector varies depending on the supplier and the quantity ordered, but it is usually around 6-12 weeks.
