163A18389X footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

PCB Footprints

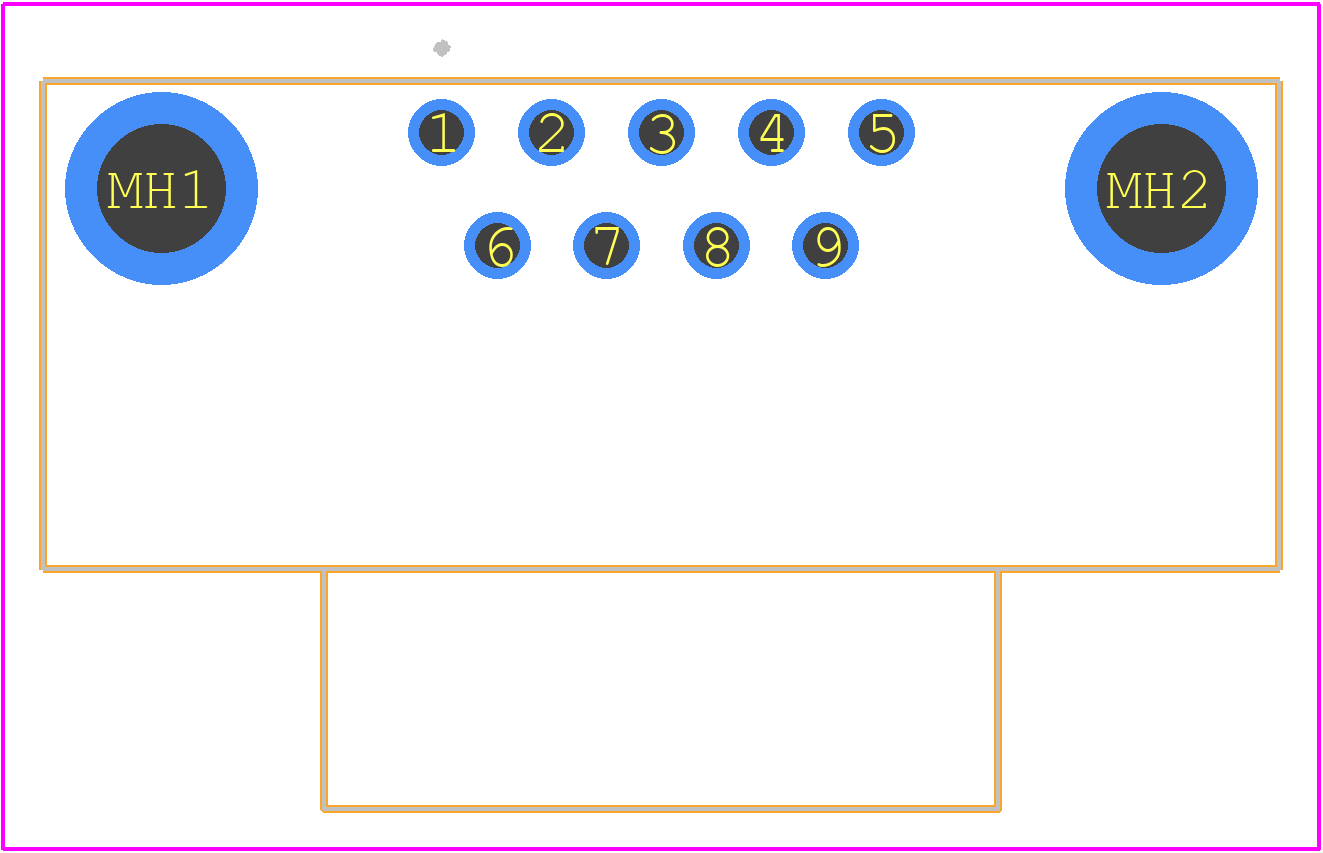

163A18389X - CONEC PCB footprint - Other - Other - 163A18389X-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 163A18389X
Part Number 163A18389X
Manufacturer CONEC
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - 163A18389X-6
Released Date Jun 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

163A18389X Details

Manufacturer Part Number:
163A18389X
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
YTEOL:
8.5
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
1/E
Termination Type:
SOLDER
Total Number of Contacts:
9

163A18389X Frequently Asked Questions (FAQs)

The operating temperature range of the 163A18389X connector is -40°C to 125°C.
Yes, the 163A18389X connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
The 163A18389X connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
Yes, the 163A18389X connector is designed to be resistant to moisture, chemicals, and other environmental stressors, making it suitable for use in harsh environments.
The typical lead time for delivery of the 163A18389X connector varies depending on the quantity and availability, but it is usually around 6-12 weeks.

Trust Checks

Expert Contribution

System Verified

Community Approved

163A18389X Overview

Use the download button to access the 163A18389X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 163A1, or try a keyword search, such as D Type Connectors
