163A18569X footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

PCB Footprints

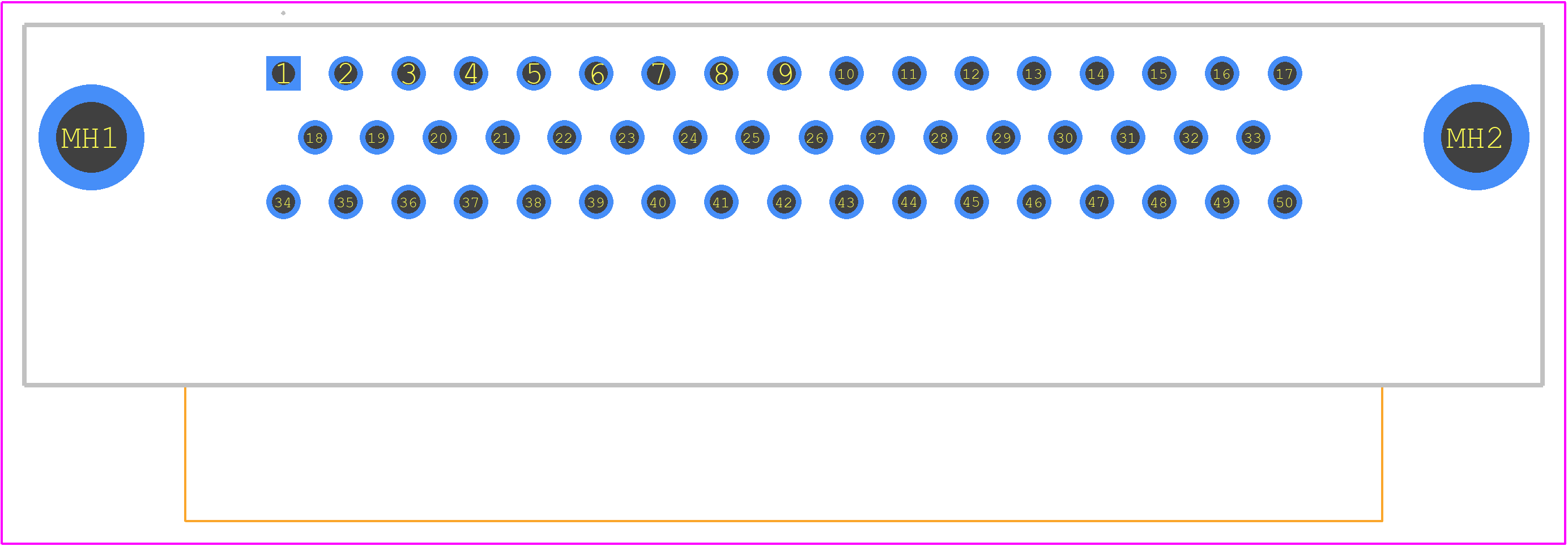

163A18569X - CONEC PCB footprint - Other - Other - 163A18569X-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 163A18569X
Part Number 163A18569X
Manufacturer CONEC
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - 163A18569X-2
Released Date Dec 7, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

163A18569X Details

Manufacturer Part Number:
163A18569X
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
YTEOL:
9
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
5/D
Termination Type:
SOLDER
Total Number of Contacts:
50

163A18569X Frequently Asked Questions (FAQs)

The operating temperature range of the 163A18569X connector is -40°C to 125°C.
Yes, the 163A18569X connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
The 163A18569X connector has a mating cycle life of 500 cycles, ensuring reliable connections even in demanding applications.
Yes, the 163A18569X connector is designed to be resistant to moisture, chemicals, and other environmental stressors, making it suitable for use in harsh environments.
The typical lead time for delivery of the 163A18569X connector is 6-8 weeks, depending on the quantity and availability.

Trust Checks

Expert Contribution

System Verified

Community Approved

163A18569X Overview

Use the download button to access the 163A18569X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 163A1, or try a keyword search, such as D Type Connectors

Parts related to 163A18569X

Showing 0 results

Image	Part Number	Model
	163C18569X Conec Corporation D Subminiature Connector
	163B18569X Conec Corporation D Subminiature Connector
For a full list of alternate parts for 163A18569X, check out Findchips.com
