1642260000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 12, THT solder connection, Box

Download 1642260000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1642260000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

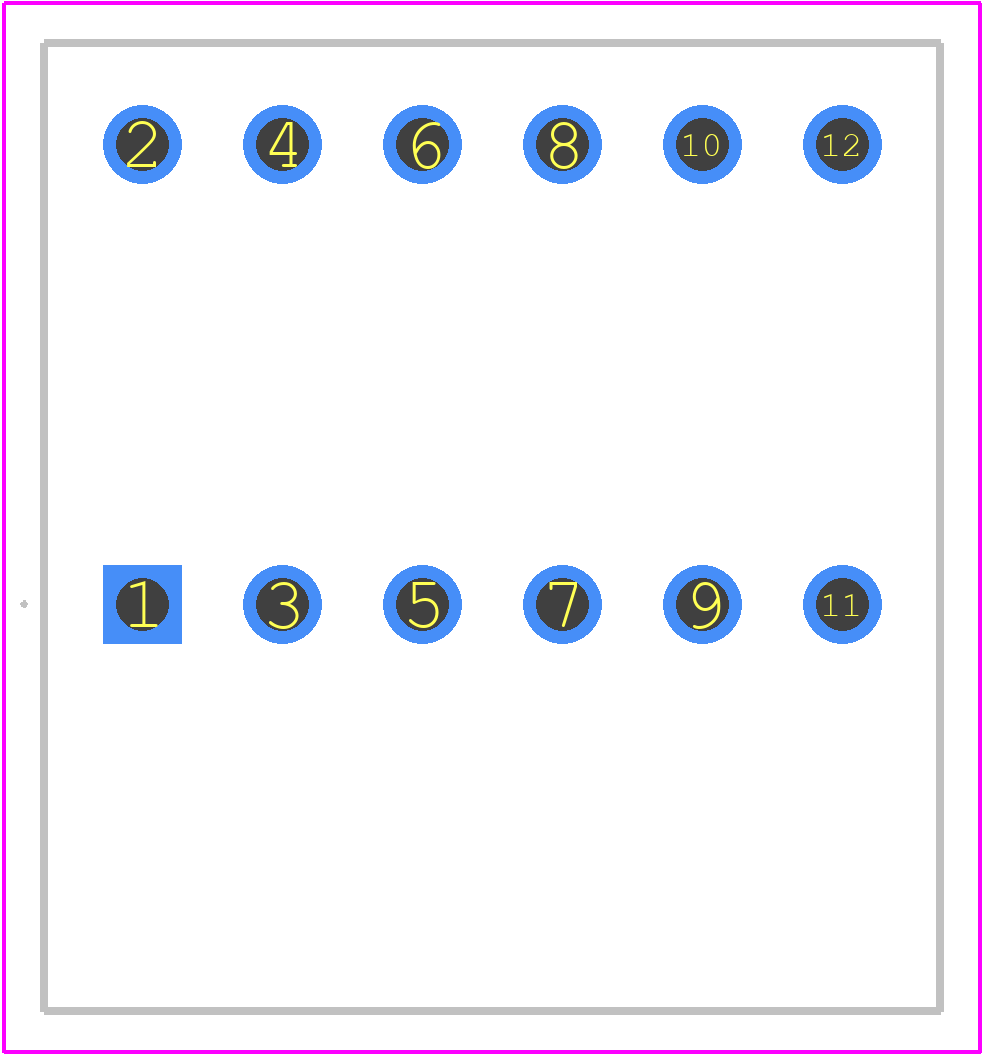

1642260000 - Weidmüller PCB footprint - Other - Other - 1642260000-1
click to zoom
3D Models
1642260000 - Weidmüller - 3D model - Other - 1642260000-1
click to zoom

1642260000 Details

  • Manufacturer Part Number:

    1642260000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1642260000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1642260000 connector is -40°C to 85°C.
  • Yes, the 1642260000 connector is designed for outdoor use and meets the IP67 rating for protection against dust and water ingress.
  • The mating cycle for the 1642260000 connector is 500 cycles.
  • Yes, the 1642260000 connector is designed to withstand high-vibration environments and meets the IEC 61373 Cat 2 standard for vibration resistance.
  • Yes, the 1642260000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and terminals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1642260000 Overview

Use the download button to access the 1642260000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16422, or try a keyword search, such as Terminals and Terminal Blocks
