1642290000 - Weidmüller

Description: PCB connector (board connection), 160 V, 10.5 A, Pitch in mm: 3.50, Number of poles: 24, THT solder connection, Box

Download 1642290000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1642290000 - Weidmüller - PCB symbol
click to zoom

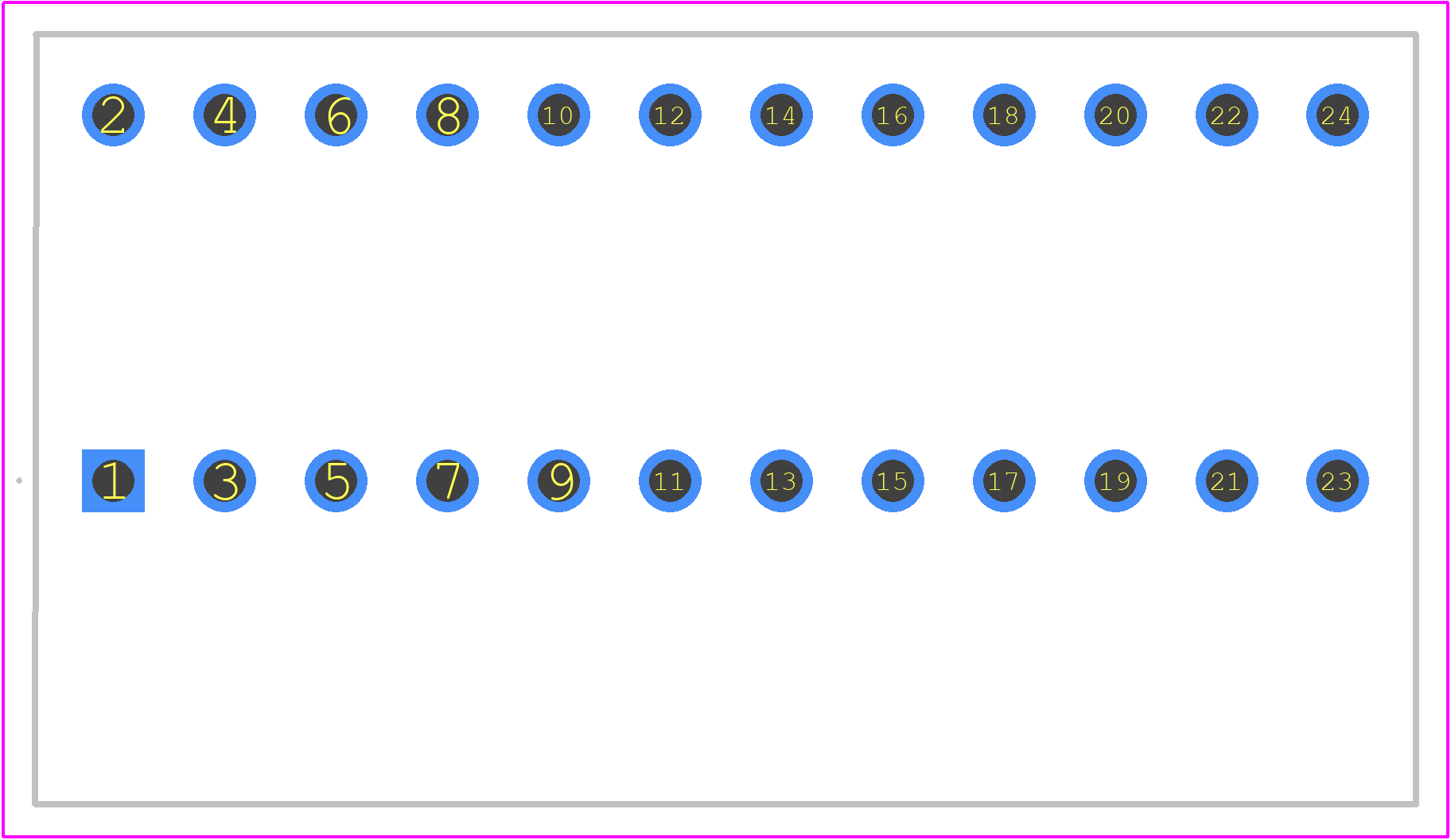

PCB Footprints
1642290000 - Weidmüller PCB footprint - Other - Other - 1642290000
click to zoom
3D Models
1642290000 - Weidmüller - 3D model - Other - 1642290000
click to zoom

1642290000 Details

  • Manufacturer Part Number:

    1642290000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    24

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1642290000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1642290000 is -40°C to 85°C, as specified by Weidmüller Interface GmbH & Co. KG.
  • Yes, the 1642290000 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating for the 1642290000 is 10A, as specified by Weidmüller Interface GmbH & Co. KG.
  • The 1642290000 is designed for indoor use, but it can be used outdoors if properly protected from environmental factors such as moisture, dust, and extreme temperatures.
  • The warranty period for the 1642290000 is typically 1-2 years, depending on the specific agreement with Weidmüller Interface GmbH & Co. KG.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1642290000 Overview

Use the download button to access the 1642290000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16422, or try a keyword search, such as Terminals and Terminal Blocks
