1649399-4 - TE Connectivity

Description: Power Relay, SPDT, 12 VDC, 16 A, PCB, DC Monostable

Download 1649399-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1649399-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

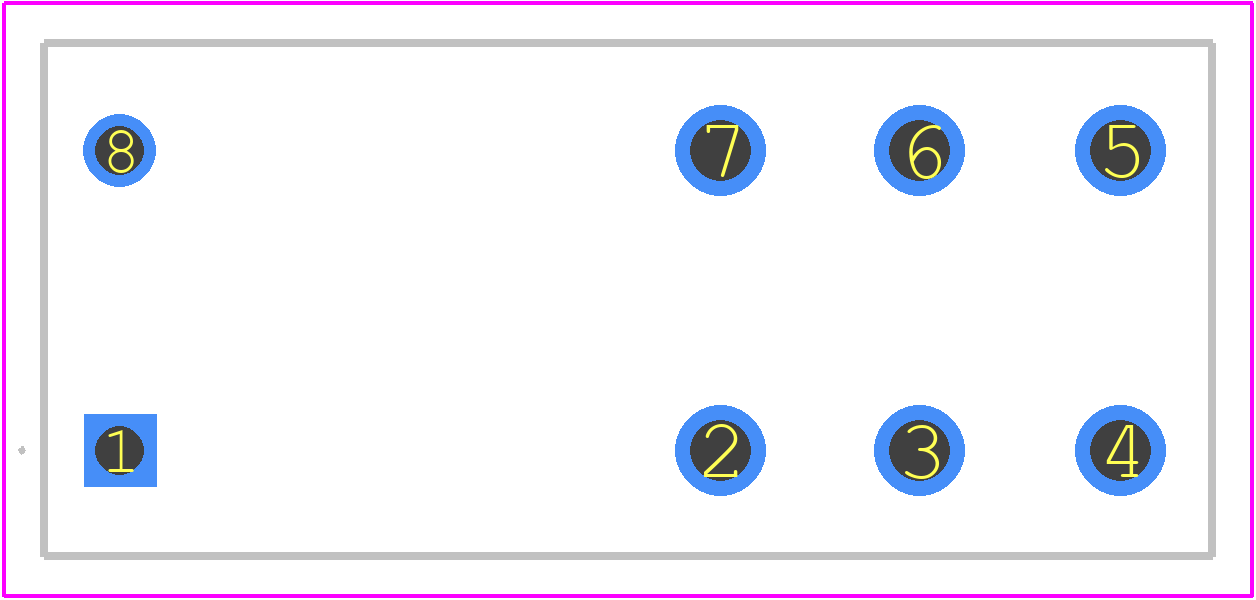

1649399-4 - TE Connectivity PCB footprint - Other - Other - 1649399-4-2
click to zoom
3D Models
1649399-4 - TE Connectivity - 3D model - Other - 1649399-4-2
click to zoom

1649399-4 Details

  • Manufacturer Part Number:

    1649399-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    12.8 mm

  • Body Height:

    20.6 mm

  • Body Length or Diameter:

    29.21 mm

  • Coil Current(DC)-Max:

    0.045 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    540 mW

  • Coil Release Voltage(DC):

    0.6 V

  • Coil Resistance:

    270 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    16A@240VAC

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact (DC) Max Rating R Load:

    16A@24VDC

  • Contact Voltage(AC)-Max:

    240 V

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    SILVER TIN ALLOY

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    29.2mm x 12.8mm x 20.6mm

  • Reference Standard:

    CSA; CQC; TUV; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    8 ms

  • Sealing:

    RT2

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

1649399-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1649399-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of appropriate wire adapters or terminals. However, it's crucial to verify the wire size and type to ensure reliable connections and prevent damage to the connector.
  • The 1649399-4 connector is designed for general-purpose applications and may not be suitable for extreme environmental conditions. If you need to use the connector in harsh environments, consider using a more specialized connector or consulting with TE Connectivity's technical support team for guidance.
  • Yes, it's essential to follow proper PCB layout and design guidelines to ensure reliable connections and prevent damage to the connector. Consider factors such as PCB thickness, hole size, and spacing, as well as thermal management and EMI shielding. Consult TE Connectivity's application notes or technical support for specific guidance.
