The recommended torque value is typically between 0.5 to 1.5 Nm (7 to 21 in-lbs), but it's best to consult the specific application requirements and Conec's recommendations for the specific connector model.
Yes, the 164A13089X connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
The 164A13089X connector is designed to meet industry standards, and its mating interface is compatible with other manufacturers' connectors that meet the same standards. However, it's recommended to verify compatibility with the specific mating connector model and manufacturer to ensure proper mating and performance.
The operating temperature range for the 164A13089X connector is typically -40°C to 125°C (-40°F to 257°F), but this may vary depending on the specific application and environmental conditions. It's essential to consult the datasheet and Conec's recommendations for the specific connector model.
The 164A13089X connector is designed to be resistant to moisture and chemicals, but its performance may be affected in extreme environments. It's essential to consult the datasheet and Conec's recommendations for the specific connector model and to ensure proper sealing and protection in harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
164A13089X Overview

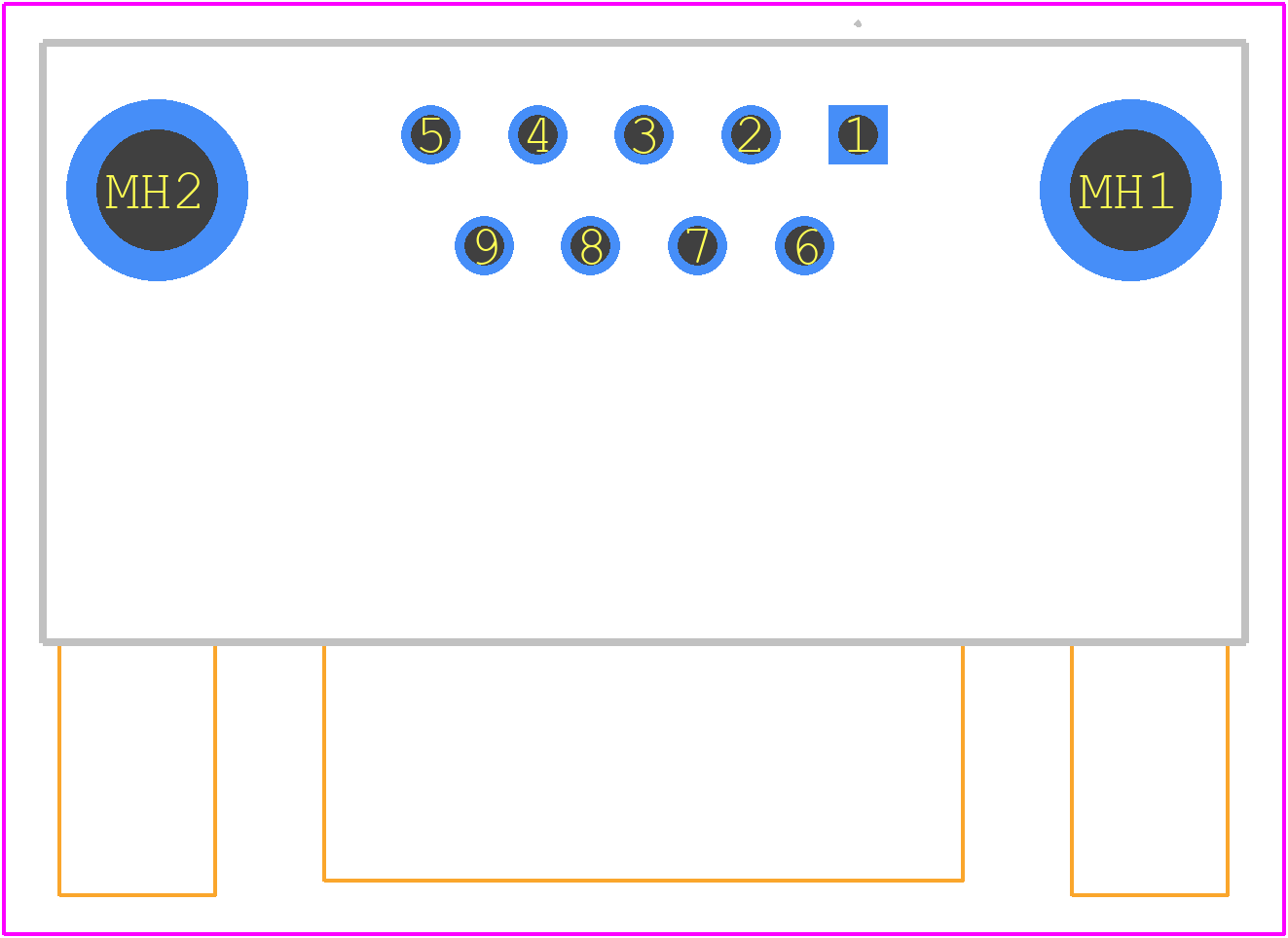

Use the download button to access the 164A13089X schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 164A1,
or try a keyword search, such as D Type Connectors
