The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads on the 164A17949X connector. However, it's always best to consult the specific application requirements and the manufacturer's recommendations.
Yes, the 164A17949X connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance. However, it's essential to ensure proper mounting and secure fastening to prevent damage or disconnection.
The 164A17949X connector has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from extreme temperatures, moisture, and contaminants.
The 164A17949X connector is rated for operating temperatures between -40°C to 125°C. However, it's essential to consider the specific application requirements and potential thermal stress on the connector.
The recommended mating cycle for the 164A17949X connector is 500 cycles. However, this may vary depending on the specific application and usage. It's essential to consult the manufacturer's recommendations and perform regular maintenance to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
164A17949X Overview

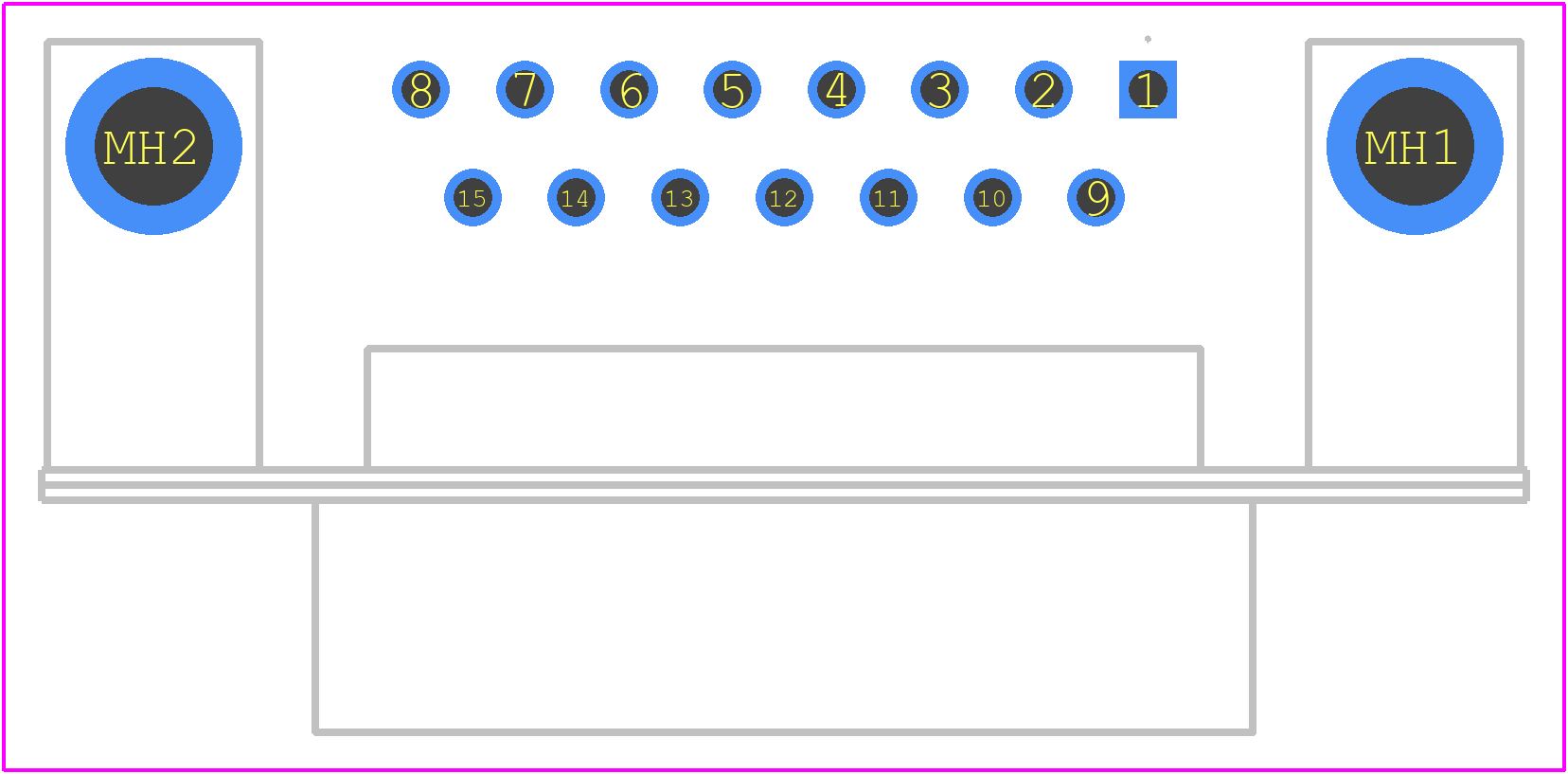

Use the download button to access the 164A17949X schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 164A1,
or try a keyword search, such as D Type Connectors
