164A18179X footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

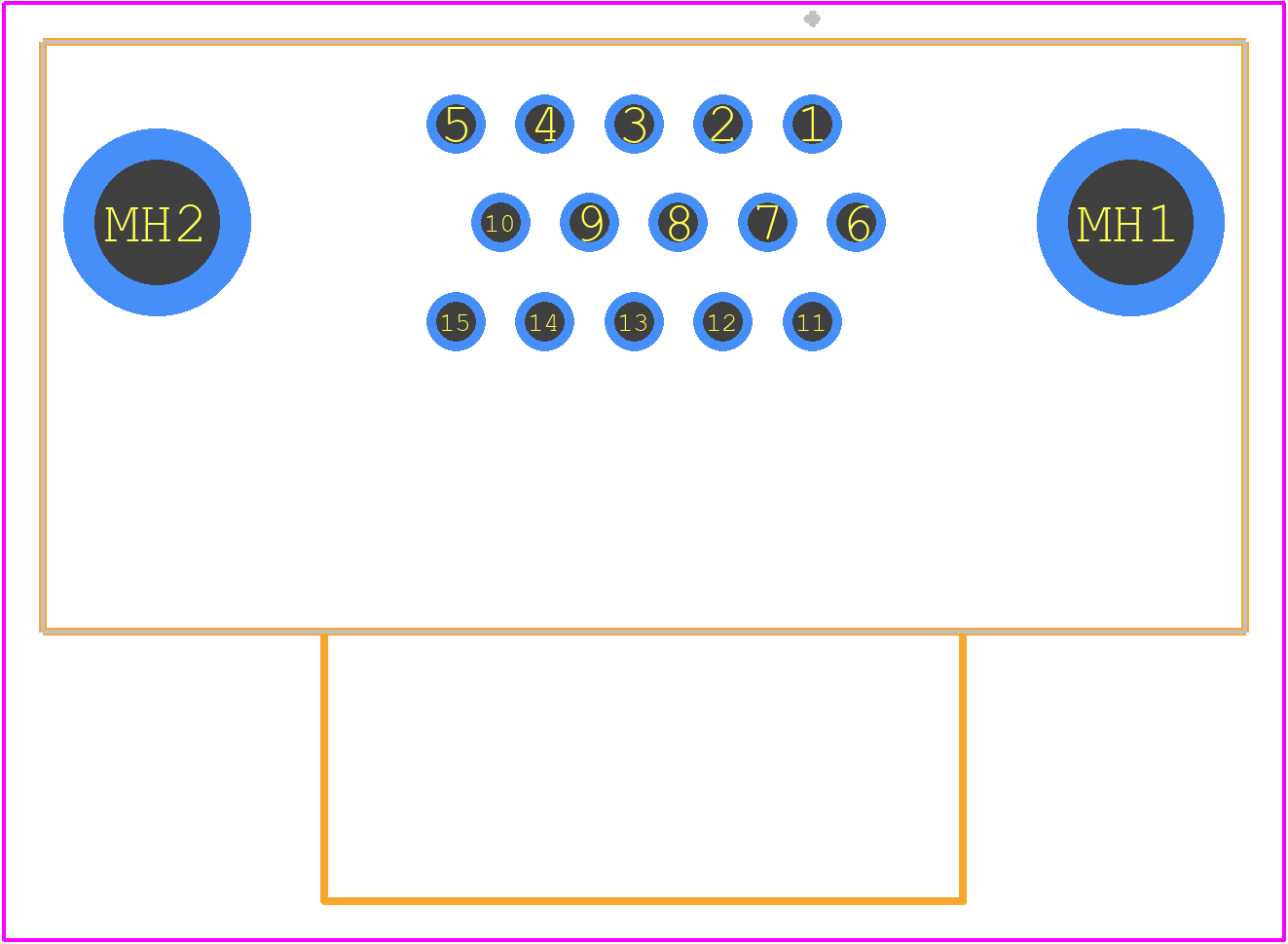

PCB Footprints

164A18179X - CONEC PCB footprint - Other - Other - 164A18179X-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 164A18179X
Part Number 164A18179X
Manufacturer CONEC
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 164A18179X-2
Released Date Jan 11, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

164A18179X Details

Manufacturer Part Number:
164A18179X
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
Additional Feature:
ROHS COMPLIANT
Body Breadth:
0.509 inch
Body Length:
1.228 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
STAGGERED
Contact Resistance:
10 mΩ
Contact Style:
RND PIN-SKT
Insertion Force-Max:
3.336 N
Insulation Resistance:
5000000000 Ω
Insulator Material:
GLASS FILLED POLYESTER
Mounting Option 1:
#4-40
Mounting Option 2:
THREADED INSERT
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
Rated Current (Signal):
3 A
Reference Standard:
UL, CSA
Shell Finish:
TIN
Shell Material:
STEEL
Terminal Length:
0.13 inch
Termination Type:
SOLDER
Total Number of Contacts:
15

164A18179X Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads to ensure proper mating and to prevent damage to the connector.
Yes, the 164A18179X connector is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to consult with a Conec Corporation representative for specific application requirements.
The operating temperature range for the 164A18179X connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
The 164A18179X connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's crucial to consult with a Conec Corporation representative to determine the connector's suitability for your specific application and environmental conditions.
The 164A18179X connector is rated for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on factors such as the application, environmental conditions, and maintenance.

Trust Checks

Expert Contribution

System Verified

Community Approved

164A18179X Overview

Use the download button to access the 164A18179X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 164A1, or try a keyword search, such as D Type Connectors
