164F24 - Hammond Manufacturing

Description: Low Voltage PCB Mount Transformer - Low Profile

Download 164F24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

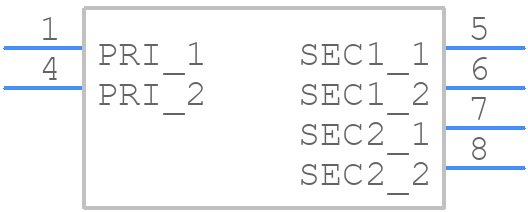

164F24 - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

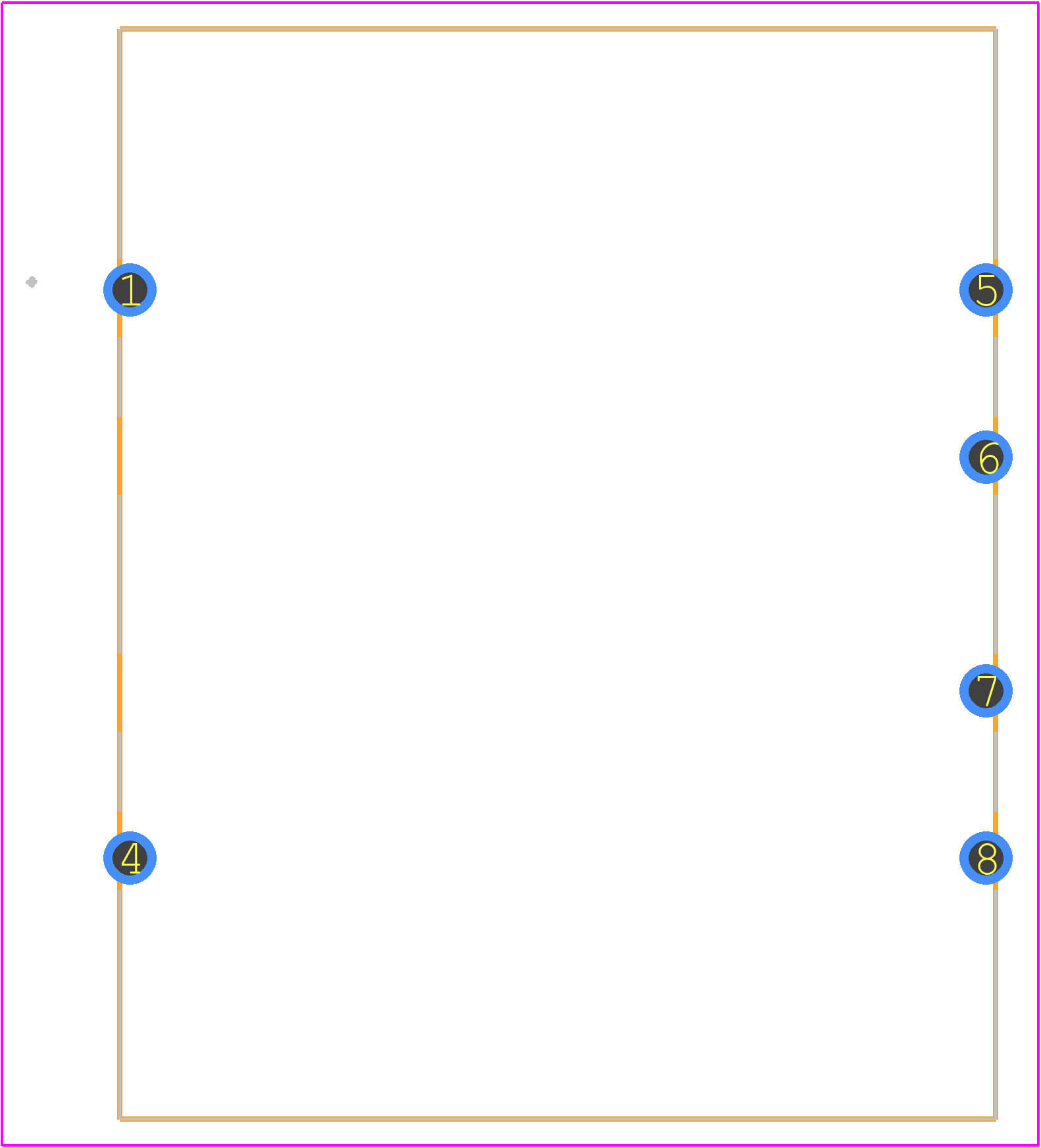

164F24 - Hammond Manufacturing PCB footprint - Other - Other - 164F24-2
click to zoom
3D Models
164F24 - Hammond Manufacturing - 3D model - Other - 164F24-2
click to zoom

164F24 Details

  • Manufacturer Part Number:

    164F24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Canada

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.02

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.274 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    2500 V

  • Length:

    41.402 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.274 mm

164F24 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 164F24 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 164F24 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure the enclosure remains secure.
  • The 164F24 is not designed for outdoor use. It's intended for indoor applications only. If you need an enclosure for outdoor use, consider Hammond's NEMA-rated enclosures.
  • Yes, Hammond Manufacturing offers customization services for their enclosures, including the 164F24. Contact their customer service or a authorized distributor for more information.
  • The 164F24 has an IP rating of IP65, which means it provides protection against dust and water jets from any direction.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

164F24 Overview

Use the download button to access the 164F24 schematic symbol, PCB footprint, and 3D model.
