1658019-3 - TE Connectivity

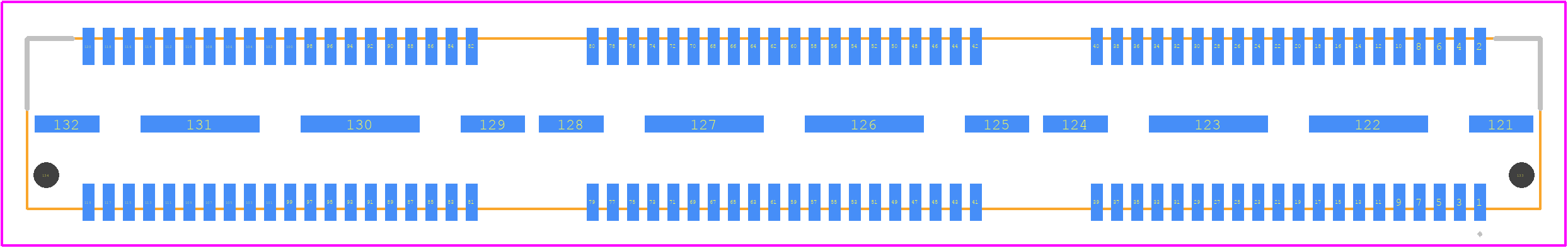

1658019-3 Details

• Manufacturer Part Number:

  1658019-3

• Brand Name:

  AMP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  11 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8.68

• Board Mounting Option:

  LOCATING POST

• Body Breadth:

  0.265 inch

• Body Depth:

  0.953 inch

• Body Length:

  2.362 inch

• Body/Shell Style:

  PLUG

• Characteristic Impedance:

  100 Ω

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  675VAC V

• Durability:

  100 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  2000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  115/230VAC

• Mating Contact Pitch:

  0.032 inch

• Mating Contact Row Spacing:

  0.186 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  6.096 mm

• Panel Mount:

  NO

• Plating Thickness:

  9.8425u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  9.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.8 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  120

• UL Flammability Code:

  94V-0
