1694240 - Phoenix Contact

Description: SACC-DSIV-M12FS-5CON-L 90 - Device connector rear mounting, 5-position, Socket, angled, M12, A-coding, Wave soldering

Download 1694240 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1694240 - Phoenix Contact - PCB symbol
click to zoom

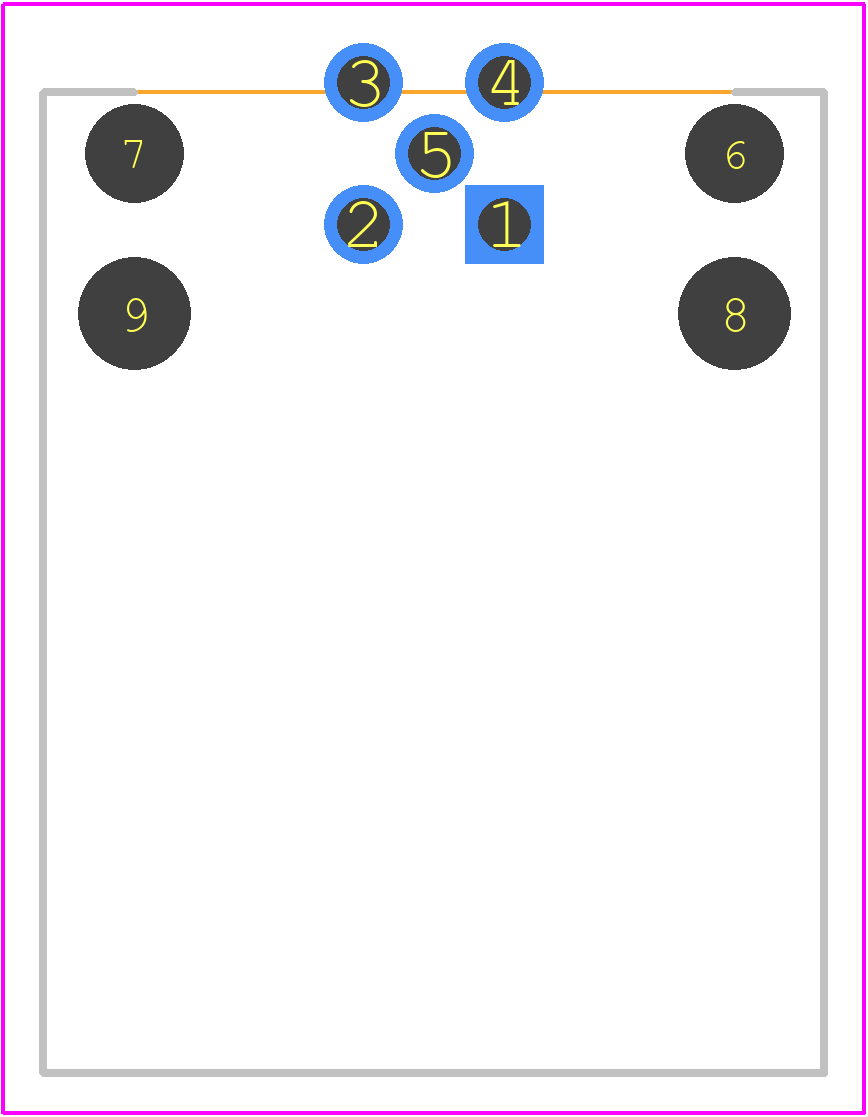

PCB Footprints
1694240 - Phoenix Contact PCB footprint - Other - Other - 1694240
click to zoom
3D Models
1694240 - Phoenix Contact - 3D model - Other - 1694240
click to zoom

1694240 Details

  • Manufacturer Part Number:

    1694240

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Total Number of Contacts:

    5

1694240 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1694240 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1694240 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consider the specific environmental conditions and potential derating factors.
  • The 1694240 connector is rated for currents up to 12A per contact. However, it's crucial to consider the specific application, wire size, and insulation to ensure safe and reliable operation.
  • Yes, Phoenix Contact recommends a minimum PCB thickness of 1.6 mm and a keep-out zone of 2 mm around the connector to ensure proper clearance and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1694240 Overview

Use the download button to access the 1694240 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16942, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
