16SEPF1000M - Panasonic

Description: Capacitor Radial SEPFseries 16V 1000uF

Download 16SEPF1000M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
16SEPF1000M - Panasonic - PCB symbol
click to zoom
PCB Footprints

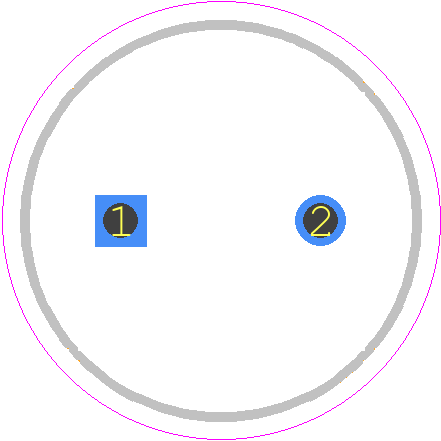

16SEPF1000M - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SEPF (F13)
click to zoom
3D Models
16SEPF1000M - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - SEPF (F13)
click to zoom

16SEPF1000M Details

  • Manufacturer Part Number:

    16SEPF1000M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    ESR IS MEASURED AT 100-300KHZ

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    12 mΩ

  • Leakage Current:

    3.2 mA

  • Length:

    13 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    270 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.12

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

16SEPF1000M Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 16SEPF1000M is a rectangular pad with a size of 5.5mm x 3.5mm, with a solder mask opening of 4.5mm x 2.5mm.
  • To handle thermal considerations, ensure good thermal conductivity between the component and the PCB by using a thermal pad or thermal interface material. Also, ensure good airflow around the component to prevent overheating.
  • The maximum operating temperature range for the 16SEPF1000M is -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
  • To ensure reliability in high-vibration environments, use a secure mounting method such as screwing or adhesive bonding, and ensure the PCB is designed to withstand vibrations. Also, consider using a vibration-dampening material or potting the component.
  • The recommended soldering profile for the 16SEPF1000M is a peak temperature of 260°C, with a dwell time of 10-30 seconds. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

16SEPF1000M Overview

Use the download button to access the 16SEPF1000M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16SEP, or try a keyword search, such as Ceramic Capacitors
