The recommended land pattern for the 16SVF82M can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a minimum pad size of 2.5mm x 1.5mm and a solder mask clearance of 0.1mm.
To minimize high-frequency noise and EMI, use proper PCB design techniques such as grounding, shielding, and decoupling. Place the 16SVF82M close to the power source, use a low-ESR capacitor, and ensure a solid ground plane. Additionally, consider using EMI filters or common-mode chokes if necessary.
While the datasheet specifies an operating temperature range of -40°C to 105°C, it's essential to consider the derating curves for voltage and current to ensure reliable operation. Consult the datasheet and Panasonic's application notes for more information.
The 16SVF82M is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use additional mechanical support, such as a bracket or a vibration-dampening material, to ensure the component's reliability and prevent mechanical stress.
To ensure reliability in humid environments, follow proper storage and handling procedures, and consider using moisture-resistant coatings or conformal coatings on the PCB. Additionally, ensure the component is properly soldered and sealed to prevent moisture ingress.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
16SVF82M Overview

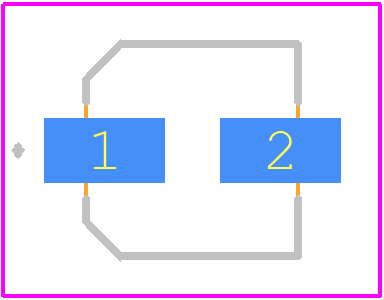

Use the download button to access the 16SVF82M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 16SVF,
or try a keyword search, such as Ceramic Capacitors
