16SVPG47M - Panasonic

16SVPG47M Frequently Asked Questions (FAQs)

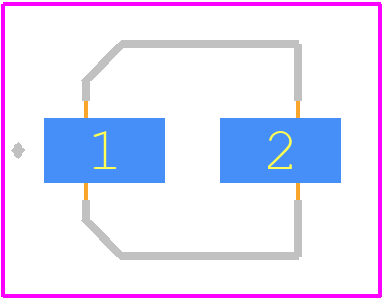

• What is the recommended land pattern for the 16SVPG47M?
  The recommended land pattern for the 16SVPG47M can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support.
• How do I handle the thermal management of the 16SVPG47M?
  The 16SVPG47M has a thermal resistance of 10°C/W, and it is recommended to use a heat sink or a thermal pad to improve heat dissipation. The device should be mounted on a PCB with a thermal via to dissipate heat efficiently.
• What is the maximum operating temperature range for the 16SVPG47M?
  The 16SVPG47M has an operating temperature range of -40°C to 125°C, but it is recommended to operate it within a temperature range of -20°C to 85°C for optimal performance and reliability.
• Can I use the 16SVPG47M in a high-vibration environment?
  The 16SVPG47M is designed to withstand vibrations up to 10G, but it is recommended to use additional mechanical support or mounting methods to ensure the device remains securely attached to the PCB in high-vibration environments.
• How do I ensure the reliability of the 16SVPG47M in high-humidity environments?
  To ensure the reliability of the 16SVPG47M in high-humidity environments, it is recommended to use a conformal coating or a moisture-resistant coating on the PCB, and to follow proper storage and handling procedures to prevent moisture absorption.
