1700846 - Phoenix Contact

Description: MKDSP 10N/ 8-10,16 - Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: MKDSP 10N, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per po

Download 1700846 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1700846 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

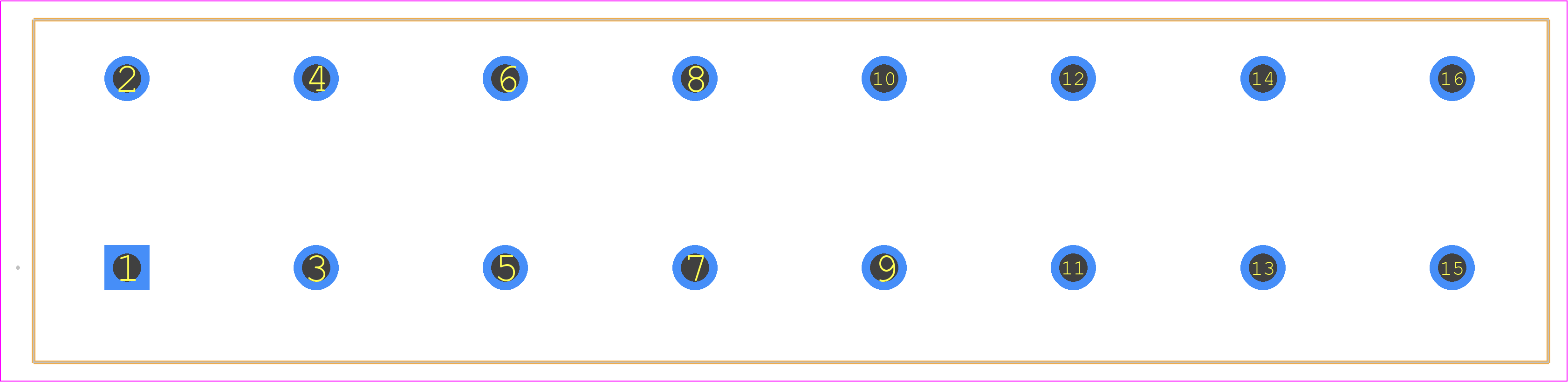

1700846 - Phoenix Contact PCB footprint - Other - Other - 1700846
click to zoom
3D Models
1700846 - Phoenix Contact - 3D model - Other - 1700846
click to zoom

1700846 Details

  • Manufacturer Part Number:

    1700846

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1700846 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1700846 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • Yes, the 1700846 is UL recognized and meets the requirements of UL 1977 and UL 498.
  • The 1700846 can operate in temperatures ranging from -40°C to 125°C, making it suitable for a wide range of industrial and commercial applications.
  • The 1700846 has a IP20 rating, which means it provides protection against solid objects larger than 12 mm, but it's not designed for use in humid or wet environments. If you need a connector for use in harsh environments, consider Phoenix Contact's IP67 or IP69K rated connectors.
