17050952401 - HARTING

Description: HM Male Type B19, unshielded, PL2, pins KKKKK, VME J0

Download 17050952401 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17050952401 - HARTING - PCB symbol
click to zoom
PCB Footprints

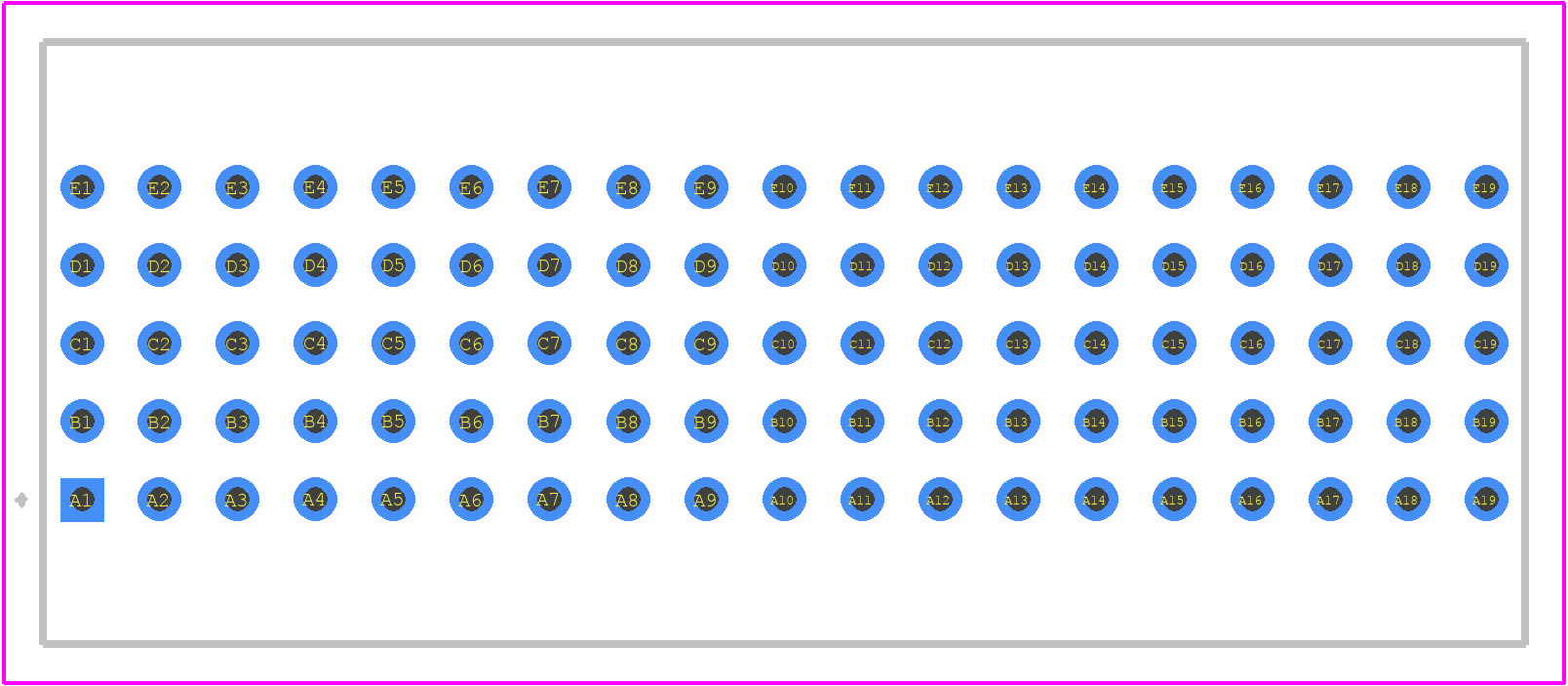

17050952401 - HARTING PCB footprint - Other - Other - 17050952401-1
click to zoom
3D Models
17050952401 - HARTING - 3D model - Other - 17050952401-1
click to zoom

17050952401 Details

  • Manufacturer Part Number:

    17050952401

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    VMEBUS, STANDARD: IEC 61076-4-113

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    95

  • UL Flammability Code:

    94V-0

17050952401 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17050952401 connector is -40°C to 125°C, according to HARTING's specifications.
