1705549-1 - TE Connectivity

Description: Body Features: Connector Profile Standard | Shield Plating Material Tin | Shield Material Brass | Configuration Features: Number of Positions 8 | Port Matrix Configuration 1 x 1 | Number of Loaded Positions 8 | PCB Mount Orientation Vertical | Connector Contact Density Standard | Port Configuration Single Port | Status Light Type Not Illuminated | Number of PCB Ground Tabs 2 | Contact Features: Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Thickness 30 MICIN | PCB Contact Term

Download 1705549-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1705549-1 - TE Connectivity - PCB symbol
click to zoom

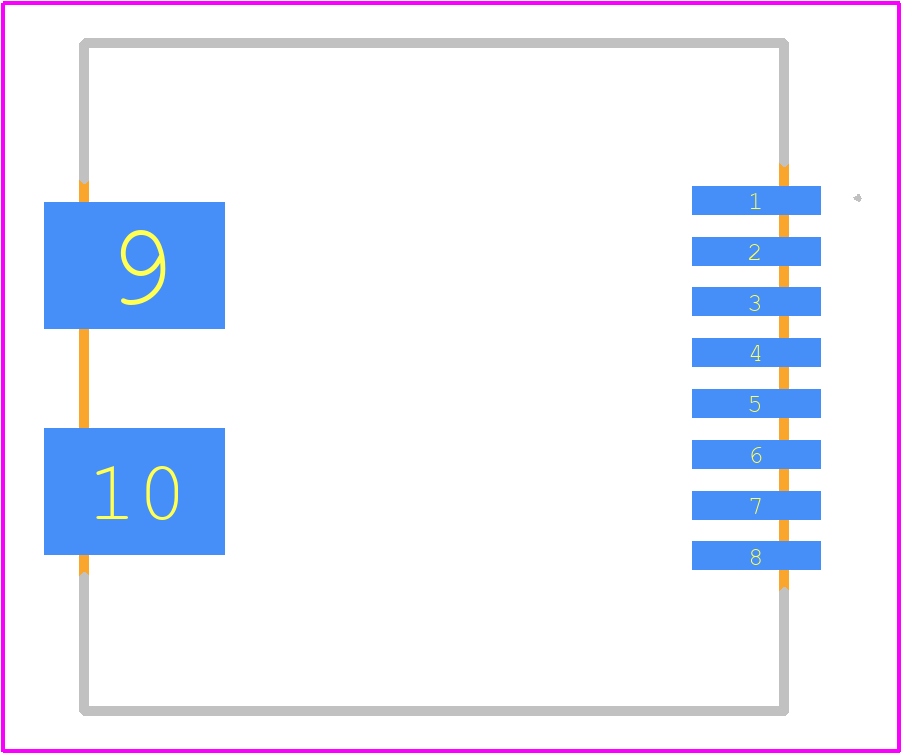

PCB Footprints
1705549-1 - TE Connectivity PCB footprint - Other - Other - 1705549-1
click to zoom
3D Models
1705549-1 - TE Connectivity - 3D model - Other - 1705549-1
click to zoom

1705549-1 Details

  • Manufacturer Part Number:

    1705549-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.95

  • Body Depth:

    0.512 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    BRASS

  • Terminal Length:

    0.51 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1705549-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1705549-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1705549-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1705549-1 connector has a sealed design, making it suitable for outdoor or harsh environments. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • The 1705549-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with your specific wire requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1705549-1 Overview

Use the download button to access the 1705549-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17055, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
