- Part Number 1705692
- Manufacturer Phoenix Contact
- Pin Count 12
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1705692-1
- Released Date Apr 24, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1705692 Details
-
Manufacturer Part Number:
1705692
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Phoenix Contact
-
YTEOL:
0
-
Additional Feature:
POLYAMIDE
-
Fastening Method:
SCREW
-
Mounting Type:
BOARD
1705692 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
-
Yes, the 1705692 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured to the panel and that the cables are properly strain-relieved to prevent damage or disconnection.
-
The 1705692 connector has a IP67 rating, which means it's protected against dust and temporary immersion in water. However, it's not recommended for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation without proper protection or additional sealing.
-
The 1705692 connector is designed for use with specific cable sizes and types. It's essential to consult the datasheet and ensure that the cable meets the recommended specifications to ensure a secure and reliable connection.
-
To ensure proper EMI shielding, it's recommended to use the connector with a shielded cable and to connect the shield to the connector's shield pin. Additionally, ensure that the connector is properly grounded to the panel or chassis to prevent electromagnetic interference.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1705692 Overview

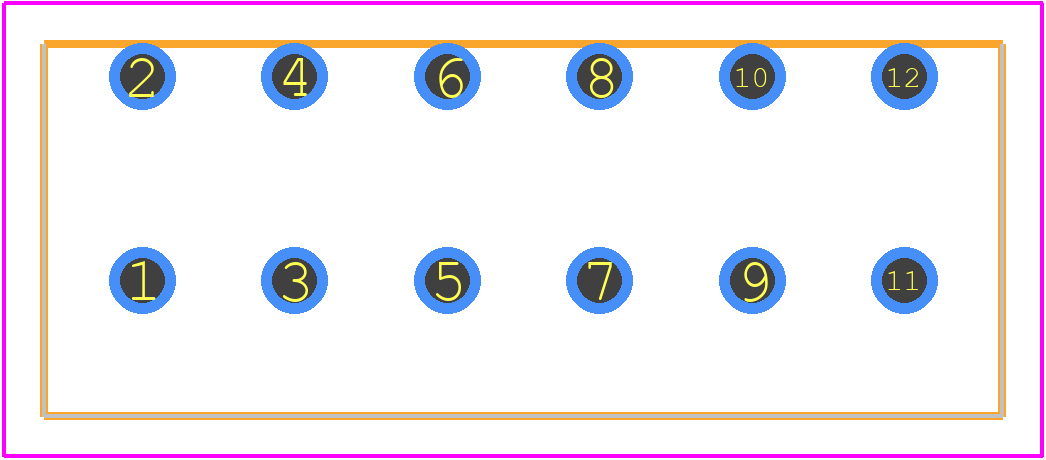

Use the download button to access the 1705692 schematic symbol, PCB footprint, and 3D model.
