Part Image

1706248 - Phoenix Contact

Description: IDC 0,3/ 9-3,81 - Printed circuit board terminal, nominal current: 5 A, rated voltage (III/2): 160 V, nominal cross section: 0.34 mm<sup>2</sup>, number of potentials: 9, number of rows: 1, number of positions per row: 9, product range: IDC 0,3, pitch: 3.81 mm, connection method: Displacement connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 1, type of packaging: packed in card

Download 1706248 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1706248 - Phoenix Contact - PCB symbol
click to zoom

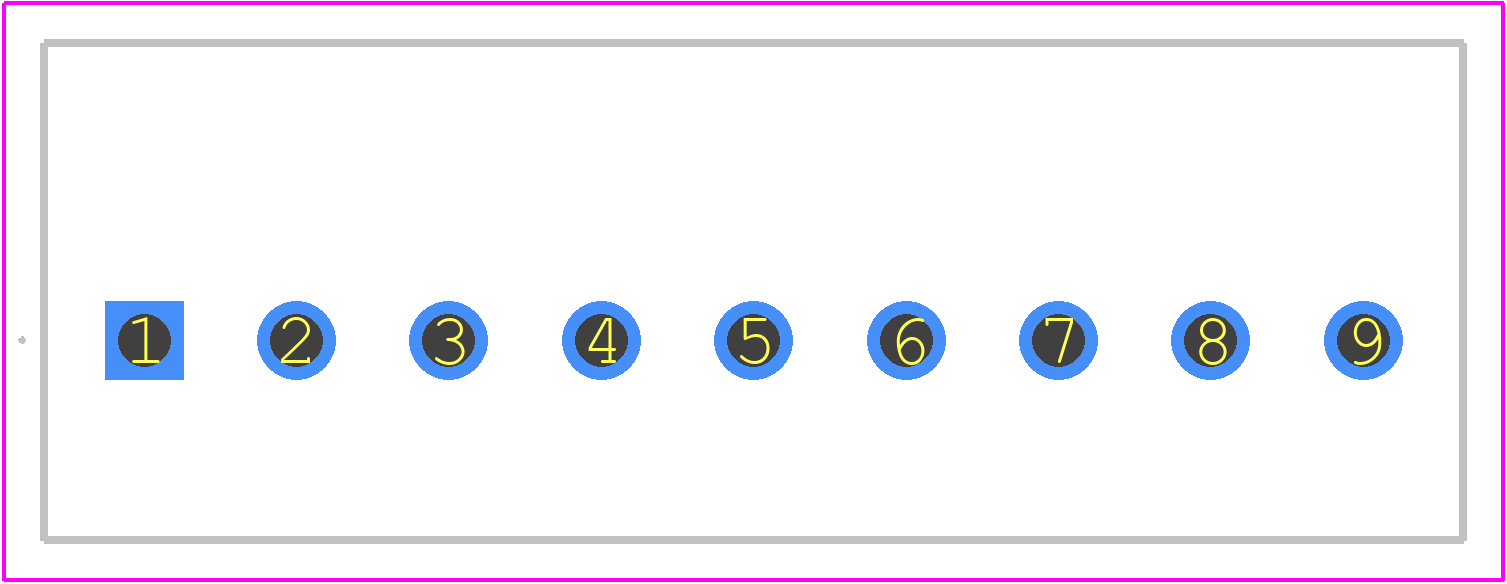

PCB Footprints
1706248 - Phoenix Contact PCB footprint - Other - Other - 1706248
click to zoom
3D Models
1706248 - Phoenix Contact - 3D model - Other - 1706248
click to zoom

1706248 Details

  • Manufacturer Part Number:

    1706248

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.5

  • Additional Feature:

    POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    5 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL; CSA

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    0.34 mm2

  • Wire Gauge:

    22 AWG

1706248 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and manufacturer's recommendations.
  • While the 1706248 is a robust connector, it's not specifically designed for high-vibration applications. For such use cases, consider using connectors with additional locking mechanisms or specialized vibration-resistant designs.
  • Yes, the 1706248 is designed for automated assembly and reflow soldering processes. However, ensure that your manufacturing process meets the recommended temperature and soldering profile guidelines.
  • The 1706248 is rated for operation between -40°C and 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1706248 is designed for signal transmission and is not intended for high-current applications. For high-current applications, consider using connectors with heavier gauge wires and specialized designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1706248 Overview

Use the download button to access the 1706248 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17062, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
