17063082001 - HARTING

Description: HM Male Type Monoblock 47, shielded, PL2, CPCI I/O

Download 17063082001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17063082001 - HARTING - PCB symbol
click to zoom

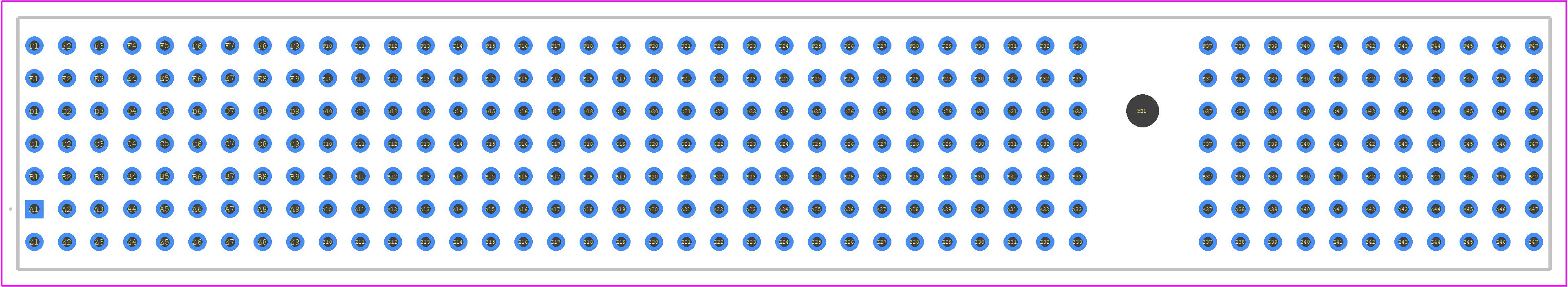

PCB Footprints
17063082001 - HARTING PCB footprint - Other - Other - 17063082001-1
click to zoom
3D Models
17063082001 - HARTING - 3D model - Other - 17063082001-1
click to zoom

17063082001 Details

  • Manufacturer Part Number:

    17063082001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    PICMG, STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    308

  • UL Flammability Code:

    94V-0

17063082001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
  • Yes, the 17063082001 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to the PCB or panel to prevent damage or disconnection.
  • The 17063082001 connector has a IP67 rating, making it suitable for outdoor use and harsh environmental conditions. However, it's essential to follow the manufacturer's guidelines for sealing and protection to maintain the IP rating.
  • While the connector is designed for AWG 24-18 wires, it may be possible to use it with other wire sizes. However, it's crucial to consult with the manufacturer or a qualified engineer to ensure the connector can handle the wire size and type, and to verify the connection's reliability.
  • The 17063082001 connector has an operating temperature range of -40°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector can operate reliably within that range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17063082001 Overview

Use the download button to access the 17063082001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17063, or try a keyword search, such as Headers and Edge Type Connectors
