17063082201 - HARTING

Description: HM Male Type Monoblock 47, shielded, PL2, pins CAAAAAC

Download 17063082201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17063082201 - HARTING - PCB symbol
click to zoom
PCB Footprints

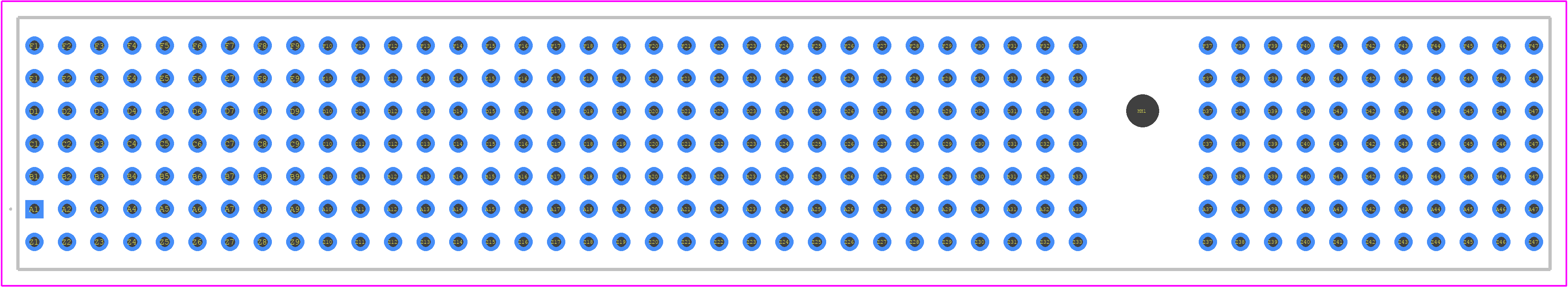

17063082201 - HARTING PCB footprint - Other - Other - 17063082201-2
click to zoom
3D Models
17063082201 - HARTING - 3D model - Other - 17063082201-2
click to zoom

17063082201 Details

  • Manufacturer Part Number:

    17063082201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    PICMG, STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    308

  • UL Flammability Code:

    94V-0

17063082201 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.4 Nm to 0.6 Nm, as specified in the HARTING application notes.
  • Yes, the 17063082201 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
  • The 17063082201 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard.
  • The maximum operating temperature range for the 17063082201 connector is -40°C to +125°C, as specified in the datasheet.
  • Yes, the 17063082201 connector is designed to be resistant to humidity and wet environments, with an IP67 rating for protection against dust and water ingress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17063082201 Overview

Use the download button to access the 17063082201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17063, or try a keyword search, such as Headers and Edge Type Connectors
