17063082203 - HARTING

Description: HM Male Type Monoblock 47, shielded, PL2, CPCI hot swap

Download 17063082203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17063082203 - HARTING - PCB symbol
click to zoom
PCB Footprints

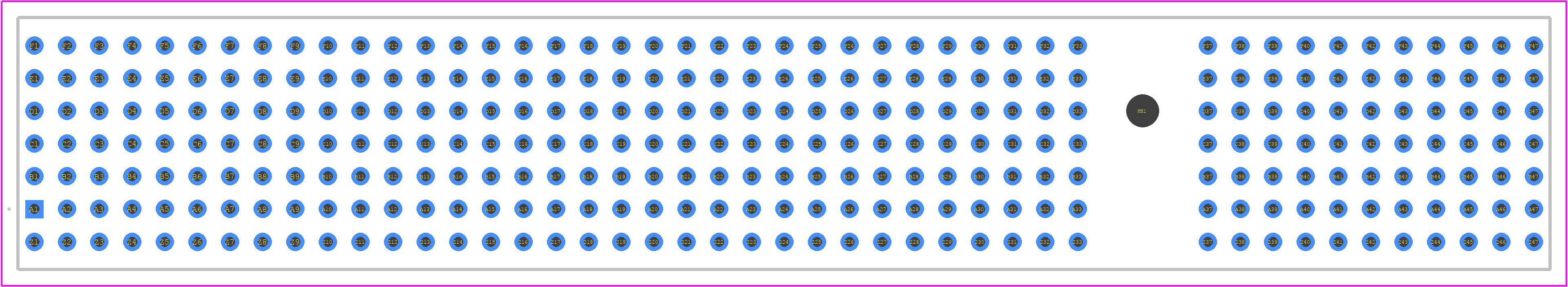

17063082203 - HARTING PCB footprint - Other - Other - 17063082203-2
click to zoom
3D Models
17063082203 - HARTING - 3D model - Other - 17063082203-2
click to zoom

17063082203 Details

  • Manufacturer Part Number:

    17063082203

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    PICMG, STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    308

  • UL Flammability Code:

    94V-0

17063082203 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17063082203 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 17063082203 connector is designed to withstand high-vibration environments, making it suitable for applications in industrial, transportation, and aerospace industries.
  • Yes, the 17063082203 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The 17063082203 connector has a mating cycle life of at least 500 cycles, according to HARTING's specifications. This means it can withstand repeated connections and disconnections without compromising its performance.
  • The 17063082203 connector is designed to be compatible with other HARTING products and components. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure compatibility with third-party components.
