The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
Yes, the 1706798 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured to the panel and that the cables are properly strain-relieved to prevent damage or disconnection.
The 1706798 connector has a IP67 rating, which means it's protected against dust and temporary immersion in water. However, it's not designed for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation. For such applications, consider using a connector with a higher IP rating or additional protection measures.
The 1706798 connector is designed for use with specific cable types and sizes. While it may be possible to use it with other cables, it's essential to consult the datasheet and manufacturer's recommendations to ensure compatibility and avoid damage or safety issues.
To ensure proper EMI shielding, make sure to connect the shield of the cable to the connector's shield, and then connect the connector's shield to the panel or chassis. Additionally, use a shielded cable and follow proper cable management practices to minimize electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1706798 Overview

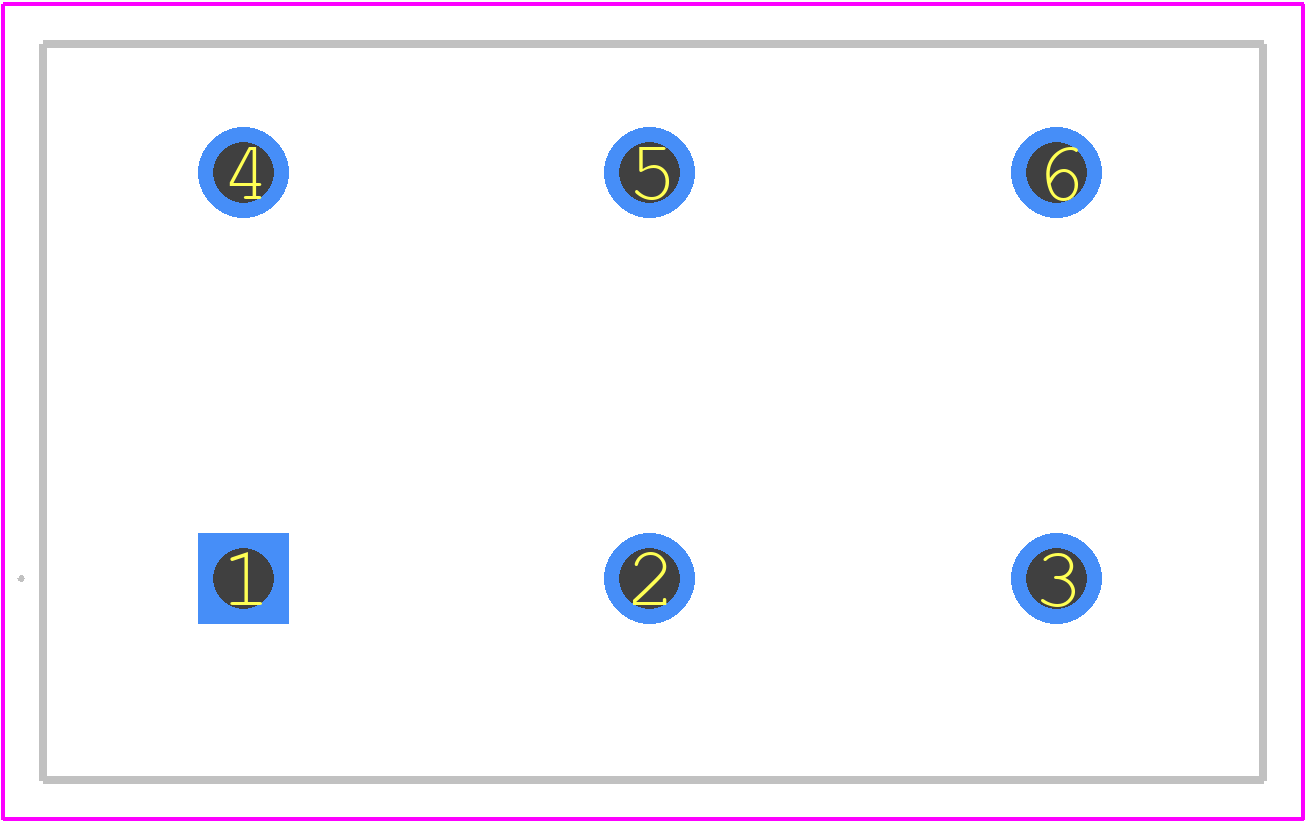

Use the download button to access the 1706798 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17067,
or try a keyword search, such as Terminals and Terminal Blocks
About Phoenix Contact
Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
