1708136 - Phoenix Contact

Description: MKKDS 1/12-3,81 - Printed circuit board terminal, nominal current: 8 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm<sup>2</sup>, number of potentials: 24, number of rows: 2, number of positions per row: 12, product range: MKKDS 1, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potenti

Download 1708136 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

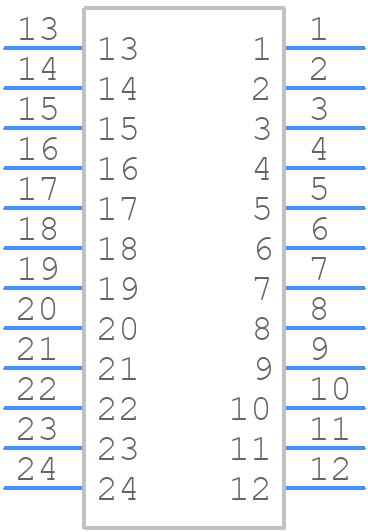

1708136 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

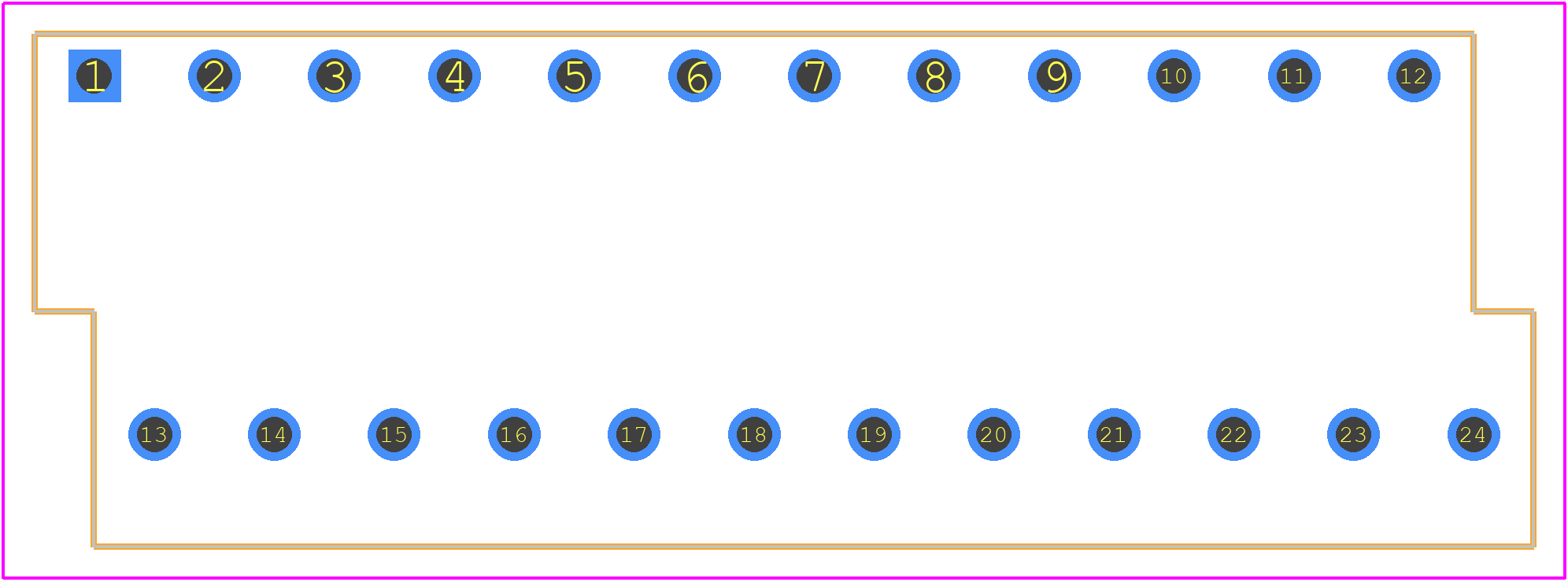

1708136 - Phoenix Contact PCB footprint - Other - Other - 1708136-2
click to zoom
3D Models
1708136 - Phoenix Contact - 3D model - Other - 1708136-2
click to zoom

1708136 Details

  • Manufacturer Part Number:

    1708136

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.49

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1 mm2

  • Wire Gauge:

    16 AWG

1708136 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and assembly guidelines for precise torque values.
  • Yes, the 1708136 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1708136 connector is designed for industrial applications and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consult the datasheet and Phoenix Contact's guidelines for specific environmental requirements.
  • Yes, the 1708136 connector is designed to be compatible with other Phoenix Contact products, including PCB terminals and connectors. However, it's essential to consult the specific product datasheets and guidelines for compatibility and assembly instructions.
  • The maximum current rating for the 1708136 connector is 12 A per contact. However, it's essential to consult the specific application requirements and ensure the connector is used within its rated specifications.
