171088-0002 footprint, schematic symbol and 3D model by Molex

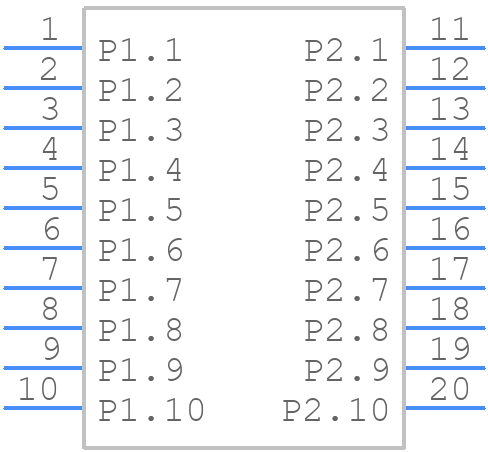

Symbol

click to zoom

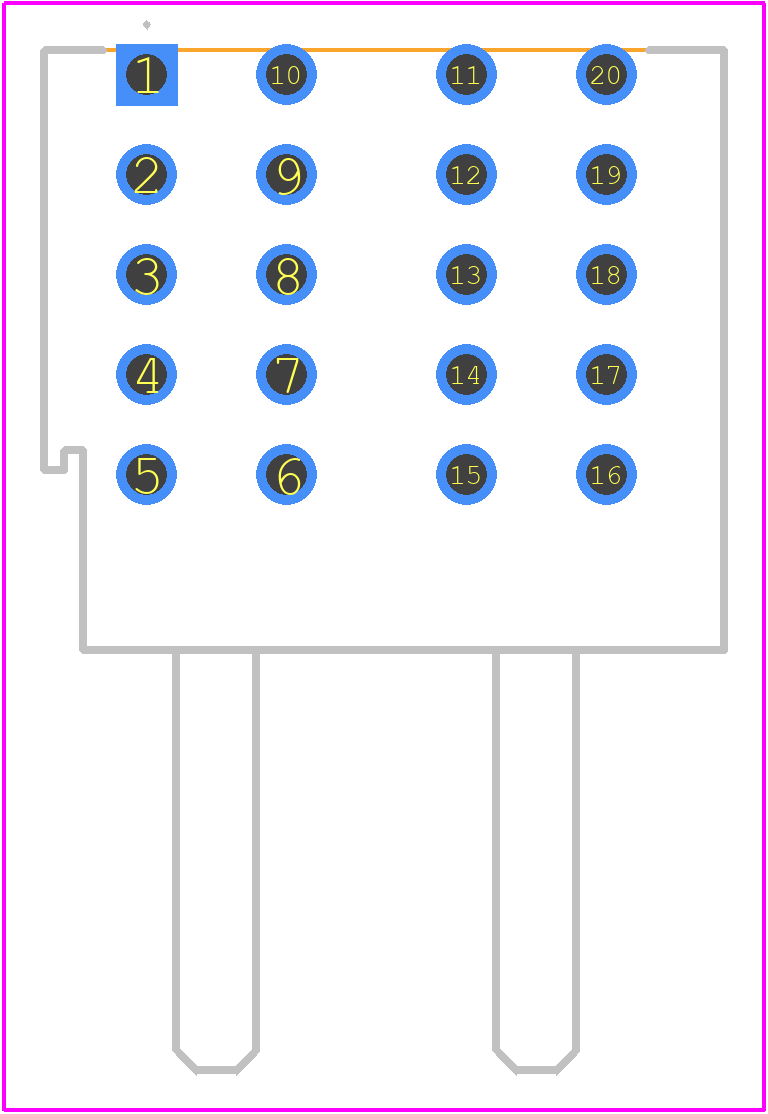

PCB Footprints

171088-0002 - Molex PCB footprint - Other - Other - 171088-0002-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 171088-0002
Part Number 171088-0002
Manufacturer Molex
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - 171088-0002-3
Released Date Mar 3, 2026
Last Modified Date Mar 3, 2026 7:32 AM UTC
Pinout / Pin List Click Here (Member Only)

171088-0002 Details

Manufacturer Part Number:
171088-0002
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Indonesia, Singapore, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Molex
YTEOL:
7
Additional Feature:
RATED CURRENT(POWER): 60A
Body Breadth:
0.394 inch
Body Depth:
0.531 inch
Body Length:
0.669 inch
Body/Shell Style:
PLUG
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Style:
BLADE PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Reference Standard:
CSA; UL
Termination Type:
PRESS FIT
Total Number of Contacts:
2
UL Flammability Code:
94V-0

171088-0002 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the Molex 1710880002 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
The Molex 1710880002 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's essential to consider additional protection measures, such as conformal coating or sealing, to ensure reliability in harsh environments.
The Molex 1710880002 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's crucial to consult with Molex or a qualified engineer to ensure the connector can handle the desired wire size and meet the application's requirements.

Trust Checks

Community Provided

System Verified

Community Approved

171088-0002 Overview

Use the download button to access the 171088-0002 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 17108, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
