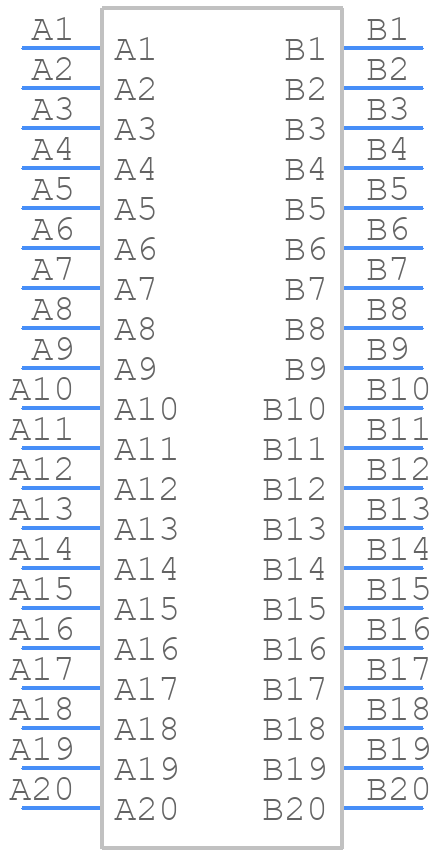

1714941 - Phoenix Contact

1714941 Details

• Manufacturer Part Number:

  1714941

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Phoenix Contact

• YTEOL:

  0

• Additional Feature:

  STACKING HEIGHT=8MM, 10.8MM; APPROVALS: UL

• Board Mounting Option:

  PEG

• Body Breadth:

  0.283 inch

• Body Depth:

  0.264 inch

• Body Length:

  1.2 inch

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• Contact Style:

  SQ PIN-SKT

• Durability:

  500 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.5 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.27 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.4 A

• Reference Standard:

  CUL;EAC;EX

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.5 N
