Part Image

172-E15-213R911 - NorComp

Description: D-Sub Standard Connectors 15 POS. DIP/SO. FEM. .225" SP/BL B/S

Download 172-E15-213R911 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

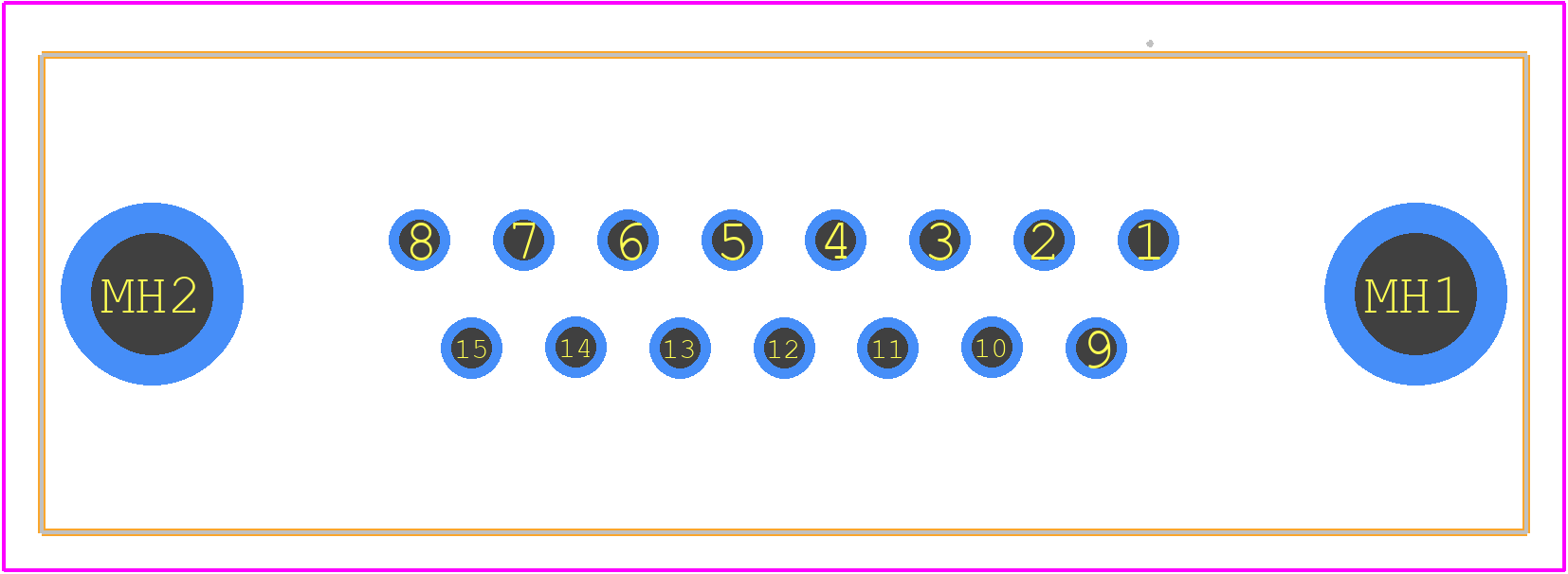

172-E15-213R911 - NorComp PCB footprint - Other - Other - 172-E15-213R911-2
click to zoom
3D Models
172-E15-213R911 - NorComp  - 3D model - Other - 172-E15-213R911-2
click to zoom

172-E15-213R911 Details

  • Manufacturer Part Number:

    172-E15-213R911

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    not_compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • Risk Rank:

    1.61

  • YTEOL:

    8.18

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.494 inch

  • Body Length:

    1.543 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    MACHINED

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold Flash (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYAMIDE/POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    0.112 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Terminal Length:

    0.189 inch

  • Terminal Pitch:

    0.108 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

172-E15-213R911 Overview

Use the download button to access the 172-E15-213R911 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 172-E, or try a keyword search, such as D Type Connectors
