The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
Yes, the 172-E50-213R021 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 172-E50-213R021 has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation. For such applications, consider using a connector with a higher IP rating or additional protection measures.
The 172-E50-213R021 has an operating temperature range of -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance, reliability, or lifespan.
While the datasheet recommends AWG 24-20 wire sizes, the connector can accommodate other wire sizes within the specified range. However, using smaller or larger wire sizes may affect the connector's performance, and it's essential to ensure the wire size meets the application's electrical and mechanical requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
172-E50-213R021 Overview

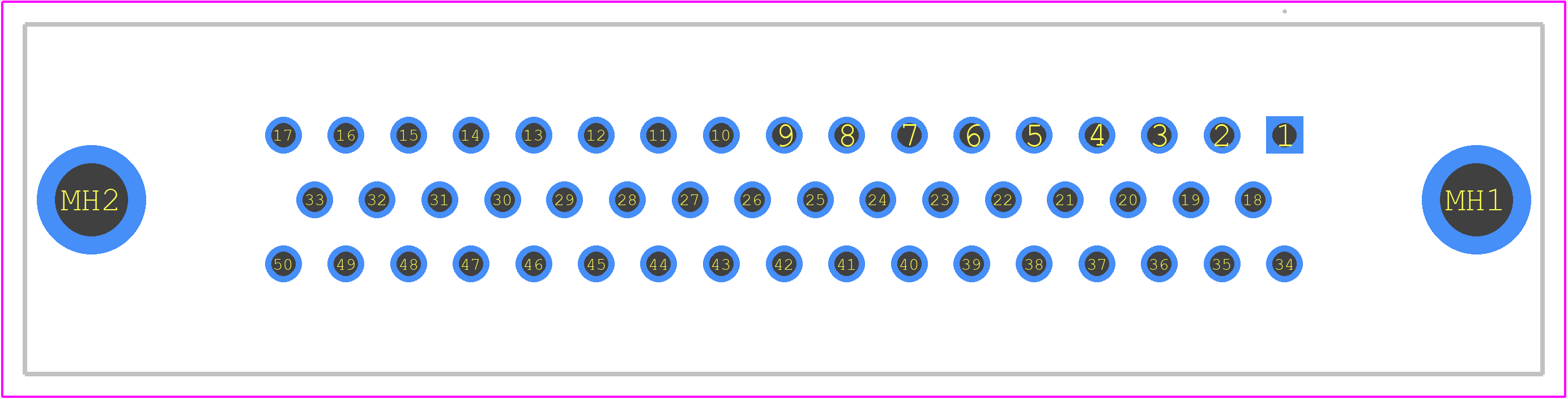

Use the download button to access the 172-E50-213R021 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 172-E,
or try a keyword search, such as D Type Connectors
