Part Image

1720650208 - Molex

Description: Mega-Fit Slim Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 8 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black

Download 1720650208 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1720650208 - Molex - PCB symbol
click to zoom

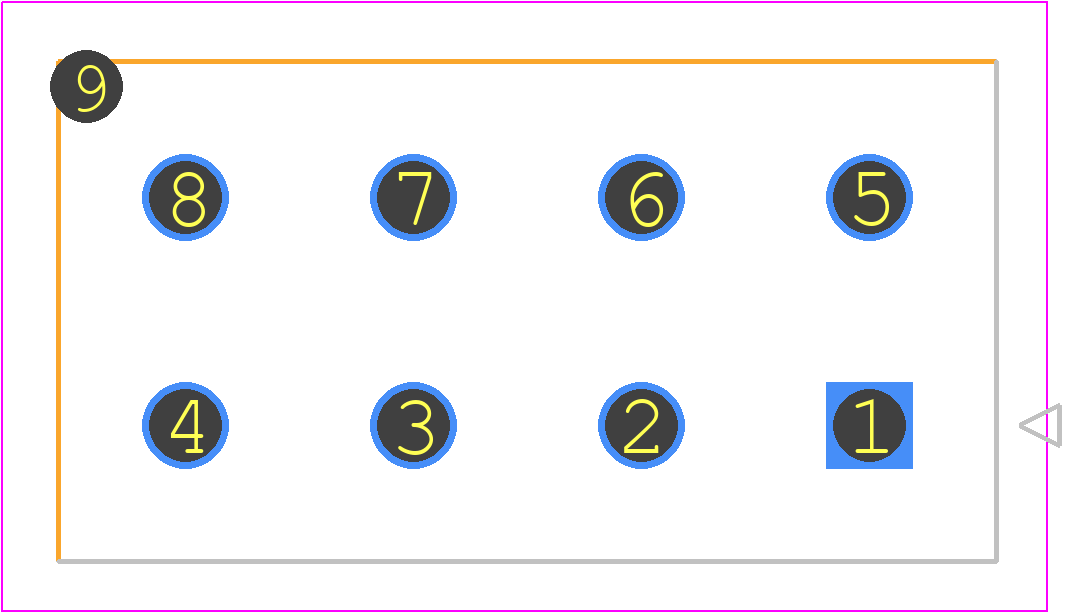

PCB Footprints
1720650208 - Molex PCB footprint - Other - Other - 172065(02,03)08
click to zoom
3D Models
1720650208 - Molex - 3D model - Other - 172065(02,03)08
click to zoom

1720650208 Details

  • Manufacturer Part Number:

    1720650208

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):23.5A, POLARIZED

  • Body Breadth:

    0.552 inch

  • Body Depth:

    0.583 inch

  • Body Length:

    0.923 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1720650208 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1720650208 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1720650208 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum operating temperature for the 1720650208 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the 1720650208 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The recommended torque for the screw locks on the 1720650208 connector is 0.5-1.5 Nm (0.37-1.06 lb-in). Over-torquing may damage the connector or the PCB.
